Removal [11/2016 - ]: Procedure

Refer to REMOVAL [11/2016 - ]

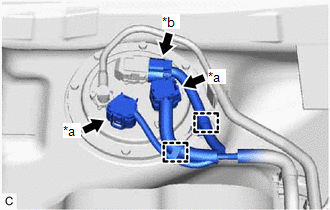

1. Disconnect the 2 fuel pump connectors and fuel tank pressure sensor (vapor pressure sensor assembly) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Fuel Pump Connector
   *b	Fuel Tank Pressure Sensor (Vapor Pressure Sensor Assembly) Connector

2. Disengage the 2 clamps to disconnect the fuel tank wire.

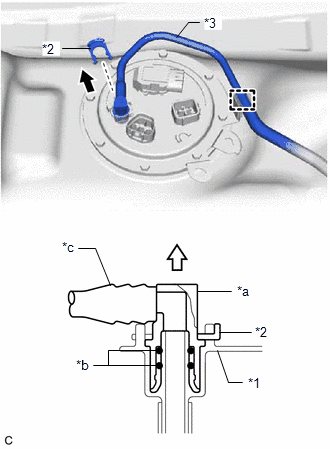

3. Remove the tube joint clip, and pull off the fuel tube joint of the fuel tank main tube sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Fuel Suction Plate Sub-assembly
   *2	Tube Joint Clip
   *3	Fuel Tank Main Tube Sub-assembly
   *a	Fuel Tube Joint
   *b	O-ring
   *c	Nylon Tube
   	Pull off
   	Pull off

   NOTE:

   • Remove any foreign matter on the fuel tube joint before performing this work.
   • Do not scratch or allow any foreign matter to get on the parts when disconnecting them as the fuel tube connector has O-rings that seal the pipe (fuel pipe).
   • Be sure to disconnect the fuel tube joint by hand.
   • Do not bend, twist, pinch or kink the nylon tube.
   • Cover the disconnected fuel tube joint with a plastic bag to prevent damage and contamination.
   • If the fuel tube joint and fuel suction plate sub-assembly are stuck, push and pull to release them.
4. Disengage the clamp to disconnect the fuel tank main tube sub-assembly.

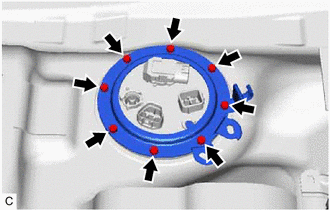

5. Remove the 8 bolts, fuel tank vent tube set plate and suction tube support plate from the fuel tank assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

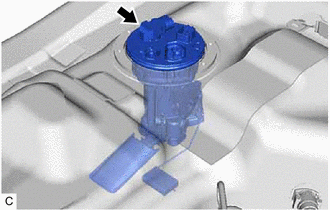

6. Remove the fuel suction tube with pump and gauge assembly from the fuel tank assembly.
   NOTE:

   Be careful not to bend the arm of the fuel sender gauge assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Remove the fuel suction tube set gasket from the fuel suction tube with pump and gauge assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
