Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [11/2016 - ]

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [11/2016 - ]

  3. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [11/2016 - ]

  6. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [11/2016 - ]

  7. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 12

  8. REMOVE FUEL PUMP PROTECTOR

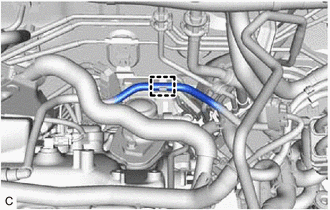

    1. Disengage the clamp to disconnect the fuel tube sub-assembly from the fuel pump protector.
      GTY721781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

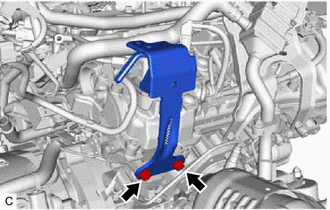

    2. Remove the 2 bolts and fuel pump protector from the cylinder head sub-assembly.
      GTY721780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT NO. 2 FUEL TUBE SUB-ASSEMBLY

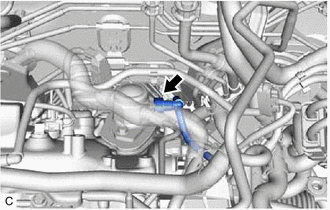

    1. Disconnect the No. 2 fuel tube sub-assembly from the fuel pump assembly.
      GTY721779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [11/2016 - ]

  10. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

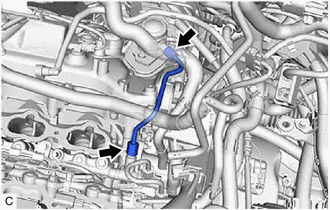

    1. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.
      GTY722147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

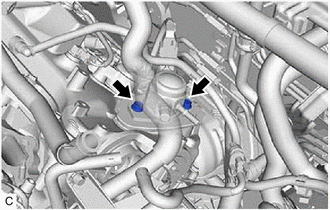

    2. Loosen the 2 bolts of the fuel pump assembly.
      GTY738760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the No. 1 fuel pipe sub-assembly from the fuel delivery pipe RH and fuel pump assembly.
  11. REMOVE FUEL PUMP ASSEMBLY

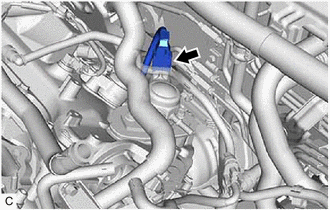

    1. Disconnect the fuel pump assembly connector.
      GTY722146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

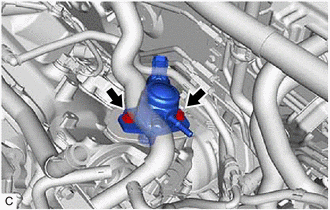

    2. Remove the 2 bolts, fuel pump assembly and fuel pump lifter guide from the cylinder head cover sub-assembly.
      GTY722145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the fuel pump assembly.
      GTY696252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the fuel pump lifter assembly from the fuel pump lifter housing.
      GTY649169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the fuel pump spacer gasket from the cylinder head cover sub-assembly.
      GTY649170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
