Components [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Fuel Pump (For High Pressure) Replacement Components With Torque Specifications (1 Of 3)
GTY732732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DECK BOARD ASSEMBLY *2 NO. 3 DECK BOARD SUB-ASSEMBLY
*3 NEGATIVE AUXILIARY BATTERY TERMINAL - -
N*m (kgf*cm, ft.*lbf): Specified torque - -


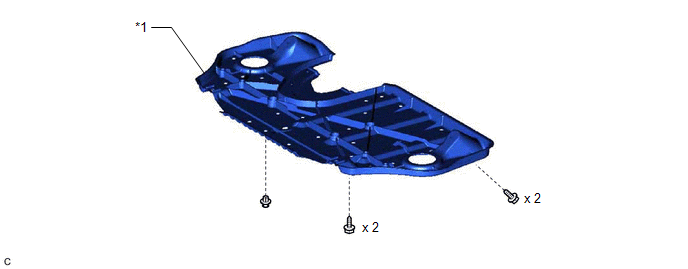

Fig 1: Fuel Pump (For High Pressure) Replacement Components (2 Of 3)
GTY729856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 2 ENGINE UNDER COVER - -

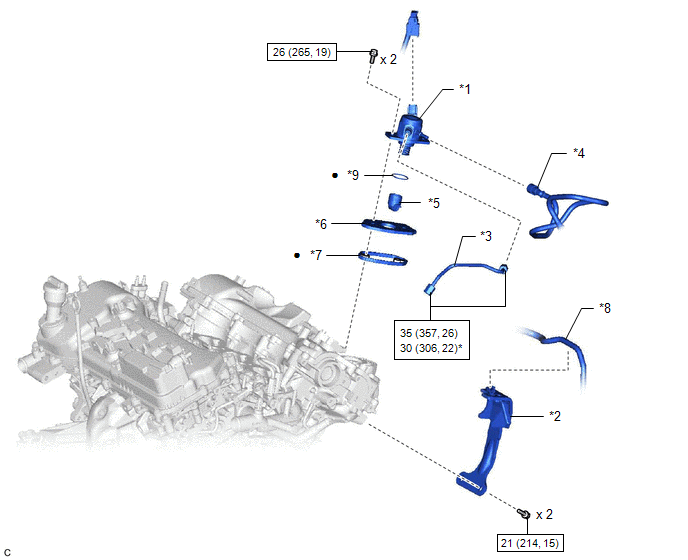

Fig 1: Fuel Pump (For High Pressure) Replacement Components With Torque Specifications (3 Of 3)
GTY736772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL PUMP ASSEMBLY *2 FUEL PUMP PROTECTOR
*3 NO. 1 FUEL PIPE SUB-ASSEMBLY *4 NO. 2 FUEL TUBE SUB-ASSEMBLY
*5 FUEL PUMP LIFTER ASSEMBLY *6 FUEL PUMP LIFTER GUIDE
*7 FUEL PUMP SPACER GASKET *8 FUEL TUBE SUB-ASSEMBLY
*9 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque * For use with a union nut wrench
• Non-reusable part - -
