Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

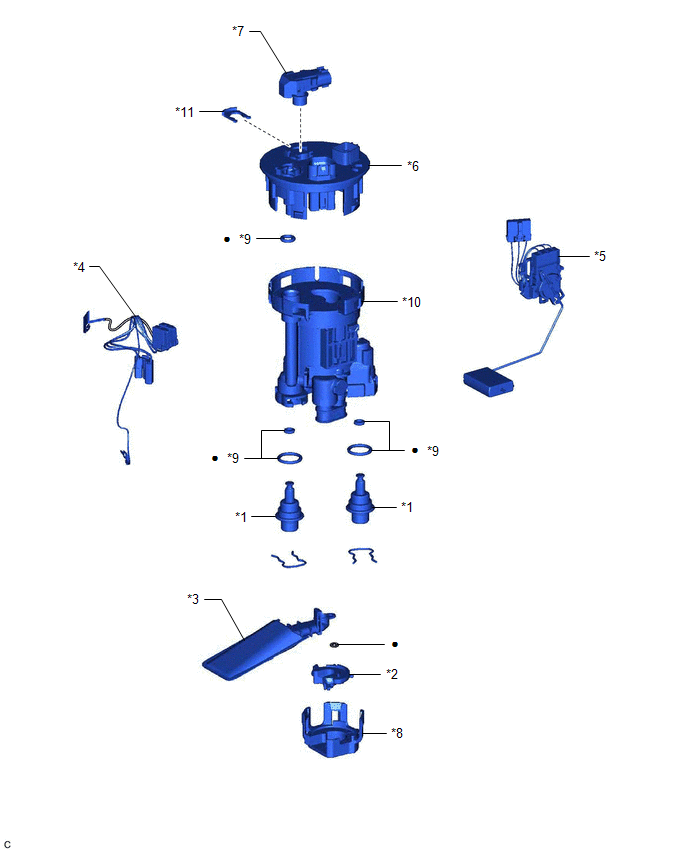

| *1 | FUEL MAIN VALVE ASSEMBLY | *2 | FUEL PUMP CUSHION RUBBER |
| *3 | FUEL PUMP FILTER | *4 | FUEL PUMP HARNESS |
| *5 | FUEL SENDER GAUGE ASSEMBLY | *6 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *7 | FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR ASSEMBLY) | *8 | NO. 2 FUEL SUCTION SUPPORT |
| *9 | O-RING | *10 | FUEL FILTER ASSEMBLY |
| *11 | TUBE JOINT CLIP | - | - |
| • | Non-reusable part | - | - |
