Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Fuel Injector (For Port Injection) Replacement Components With Torque Specifications (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | DECK BOARD ASSEMBLY | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | NEGATIVE AUXILIARY BATTERY TERMINAL | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

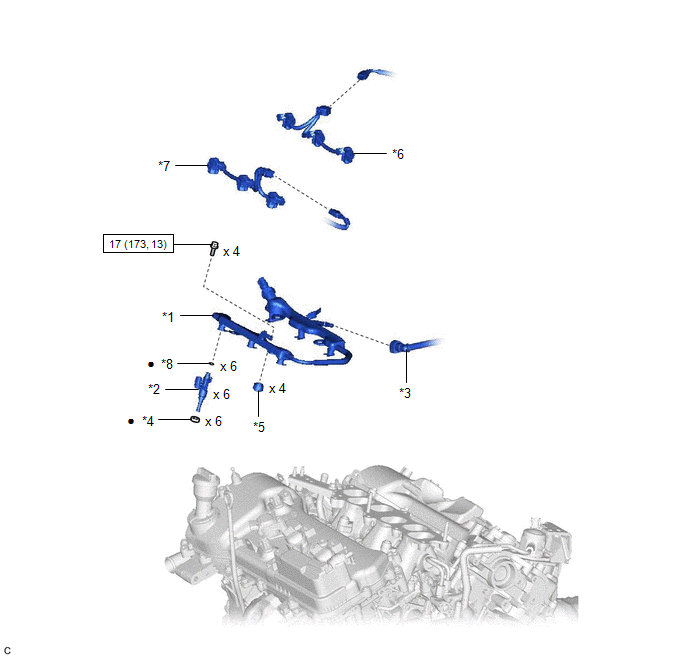

Fig 1: Fuel Injector (For Port Injection) Replacement Components With Torque Specifications (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY | *2 | FUEL INJECTOR ASSEMBLY |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | INJECTOR VIBRATION INSULATOR |
| *5 | NO. 1 DELIVERY PIPE SPACER | *6 | NO. 5 ENGINE WIRE (for Bank 1) |
| *7 | NO. 5 ENGINE WIRE (for Bank 2) | *8 | O-RING |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
