Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

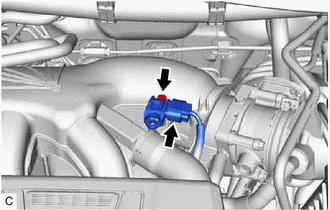

    1. Disconnect the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) connector.
      GTY681073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) from the intake air surge tank assembly.
