Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  2. REMOVE PURGE VALVE (PURGE VSV)
    1. Disconnect the purge valve (purge VSV) connector.

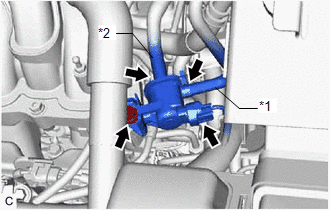

      GTY700212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Vapor Feed Hose Assembly
      *2 No. 1 Fuel Vapor Feed Hose
    2. Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
    3. Slide the clip and disconnect the fuel vapor feed hose assembly from the purge valve (purge VSV).
    4. Remove the bolt and purge valve (purge VSV) from the intake air surge tank assembly.
