Installation [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL PURGE VALVE (PURGE VSV)

Install the purge valve (purge VSV) to the intake air surge tank assembly with the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

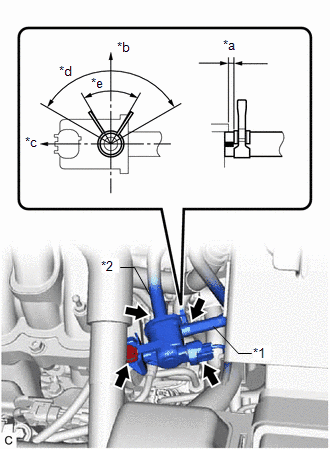

*1	Fuel Vapor Feed Hose Assembly
*2	No. 1 Fuel Vapor Feed Hose
*a	1 to 6 mm (0.0394 to 0.236 in.)
*b	Up
*c	Front
*d	120°
*e	60°

Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

Connect the fuel vapor feed hose assembly to the purge valve (purge VSV) and slide the clip to secure it.
HINT:

Engage the clip within the area shown in the illustration.
Connect the No. 1 fuel vapor feed hose to the purge valve (purge VSV).
Connect the purge valve (purge VSV) connector.

INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 74
