Components [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

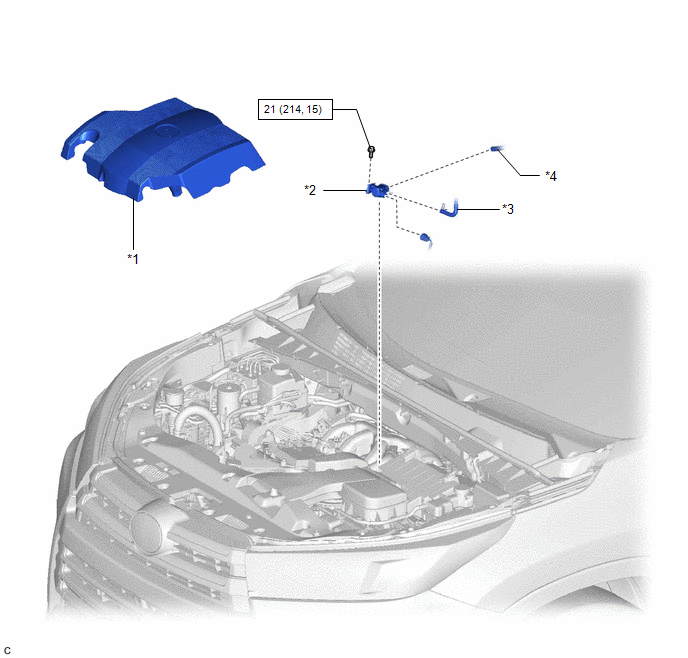

Fig 1: Purge Valve Replacement Components With Torque Specifications
GTY701516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 V-BANK COVER SUB-ASSEMBLY *2 PURGE VALVE (PURGE VSV)
*3 FUEL VAPOR FEED HOSE ASSEMBLY *4 NO. 1 FUEL VAPOR FEED HOSE
N*m (kgf*cm, ft.*lbf): Specified torque - -
