Components [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

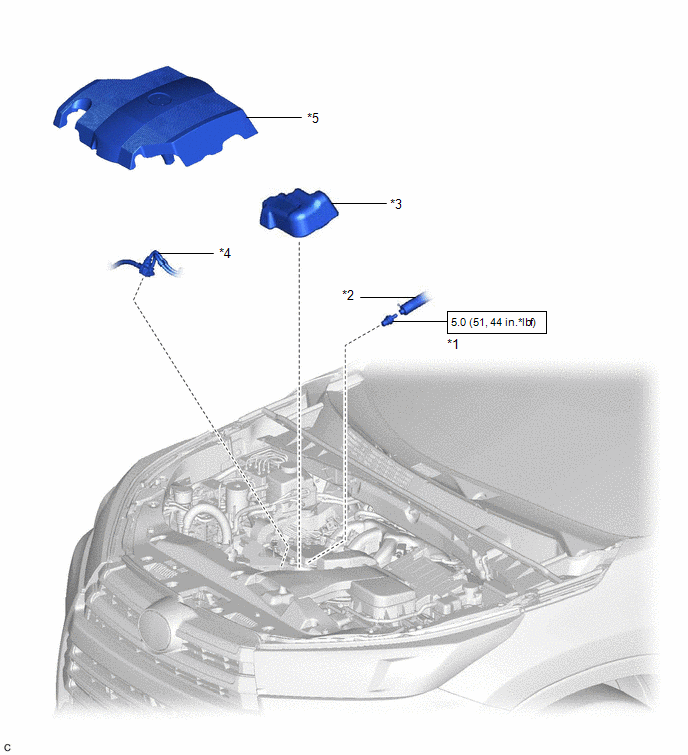

Fig 1: PCV Valve Replacement Components With Torque Specifications
GTY725268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) *2 VENTILATION HOSE
*3 NO. 1 ENGINE COVER *4 WIRE HARNESS
*5 V-BANK COVER SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
