Installation [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY)
    1. Install the fuel tank vent hose sub-assembly to the fuel vapor containment valve (fuel tank solenoid main valve assembly).
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the fuel tank vent hose sub-assembly and fuel tank assembly before performing this work.
      • After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the fuel tank vent hose sub-assembly.

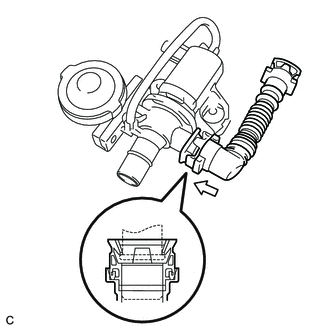

      GTY194377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the fuel vapor containment valve (fuel tank solenoid main valve assembly) to the fuel tank assembly with the 2 nuts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    3. Push the fuel tank vent hose sub-assembly onto the fuel vapor containment valve (fuel tank solenoid main valve assembly) and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid main valve assembly) before performing this work.
      • After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the fuel tank vent hose sub-assembly.

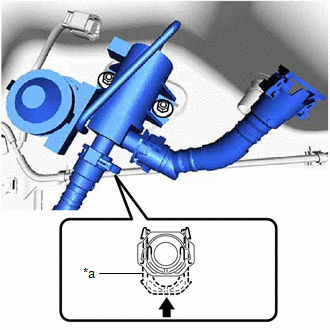

      GTY437590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push in
    4. Connect the fuel tank vent hose sub-assembly to the fuel tank assembly.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the fuel tank vent hose sub-assembly and fuel tank assembly before performing this work.
      • After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the fuel tank vent hose sub-assembly.
    5. Connect the fuel vapor containment valve (fuel tank solenoid main valve assembly) connector.
  2. INSTALL FUEL TANK ASSEMBLY

    Refer to INSTALLATION [11/2016 - ]
