Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

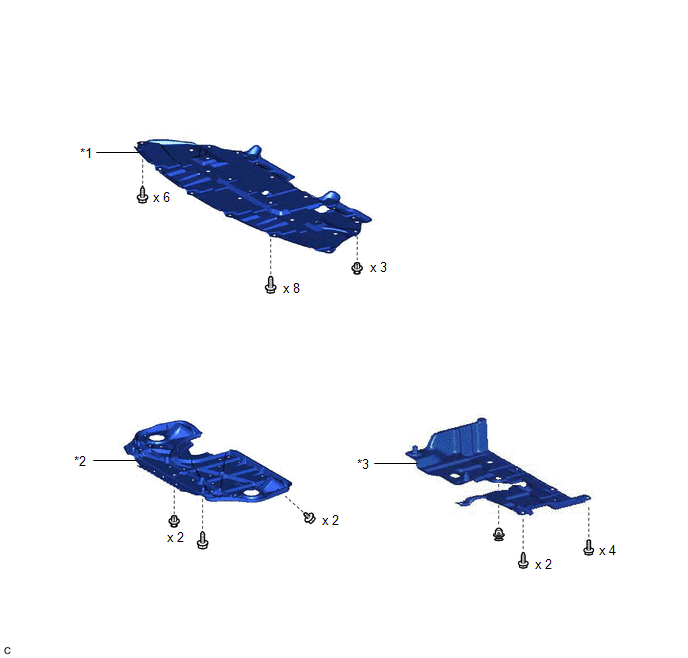

| *1 |
NO. 1 ENGINE UNDER COVER |
*2 |
NO. 2 ENGINE UNDER COVER |
| *3 |
FRONT FLOOR COVER LH |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

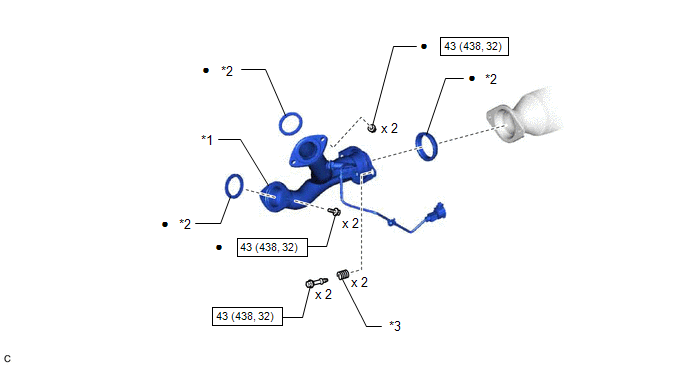

| *1 |
FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY |
*2 |
EXHAUST PIPE GASKET |
| *3 |
COMPRESSION SPRING |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

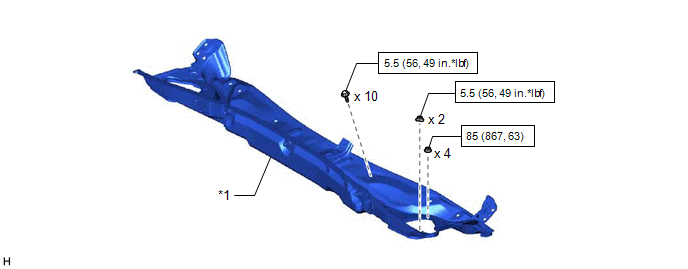

| *1 |
OUTER COWL TOP PANEL SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

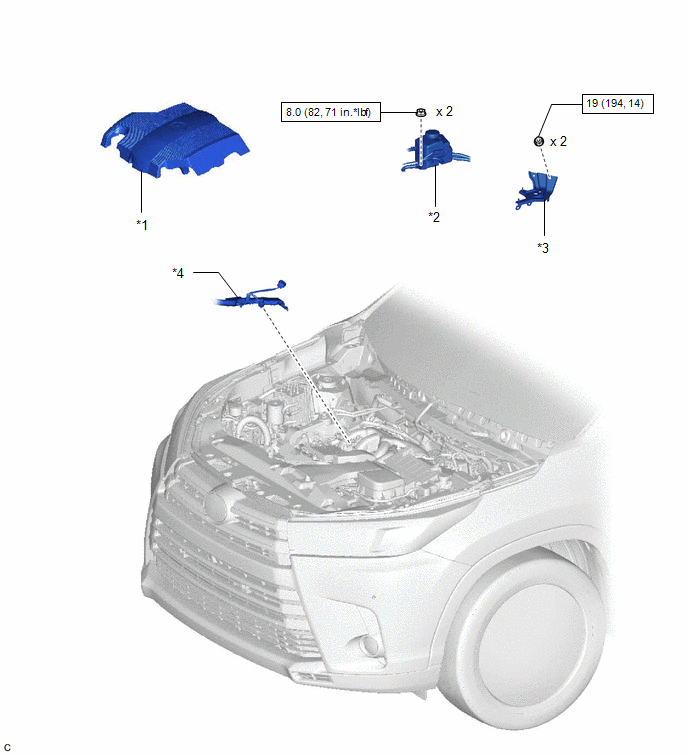

| *1 |
V-BANK COVER SUB-ASSEMBLY |
*2 |
BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
| *3 |
RESERVOIR BRACKET |
*4 |
WIRE HARNESS |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

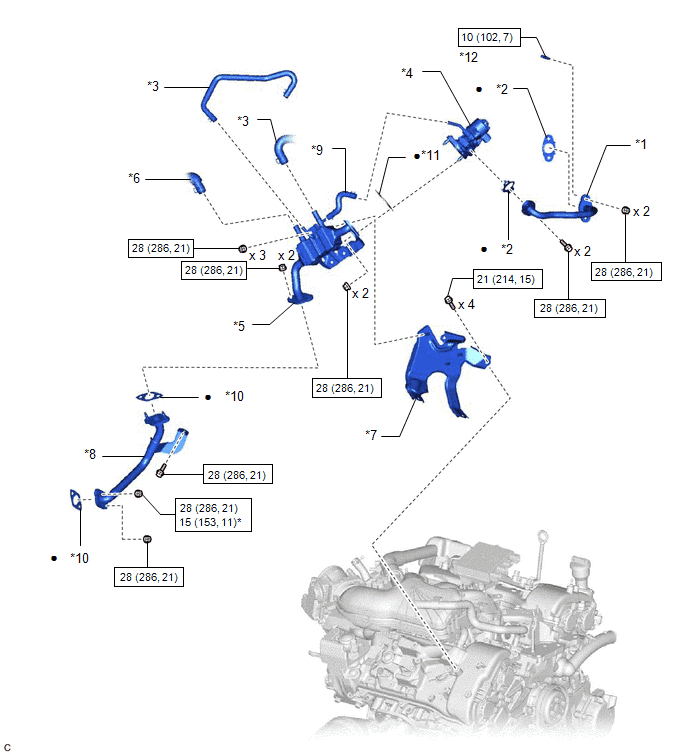

| *1 |
NO. 2 EGR PIPE |
*2 |
NO. 2 EGR PIPE GASKET |
| *3 |
WATER BY-PASS HOSE ASSEMBLY |
*4 |
EGR VALVE ASSEMBLY |
| *5 |
EGR COOLER ASSEMBLY |
*6 |
NO. 6 WATER BY-PASS HOSE |
| *7 |
EGR COOLER BRACKET |
*8 |
NO. 1 EGR PIPE |
| *9 |
NO. 9 WATER BY-PASS HOSE |
*10 |
EGR INLET GASKET |
| *11 |
EGR VALVE GASKET |
*12 |
STUD BOLT |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
- |
- |
