Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
OUTER COWL TOP PANEL SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

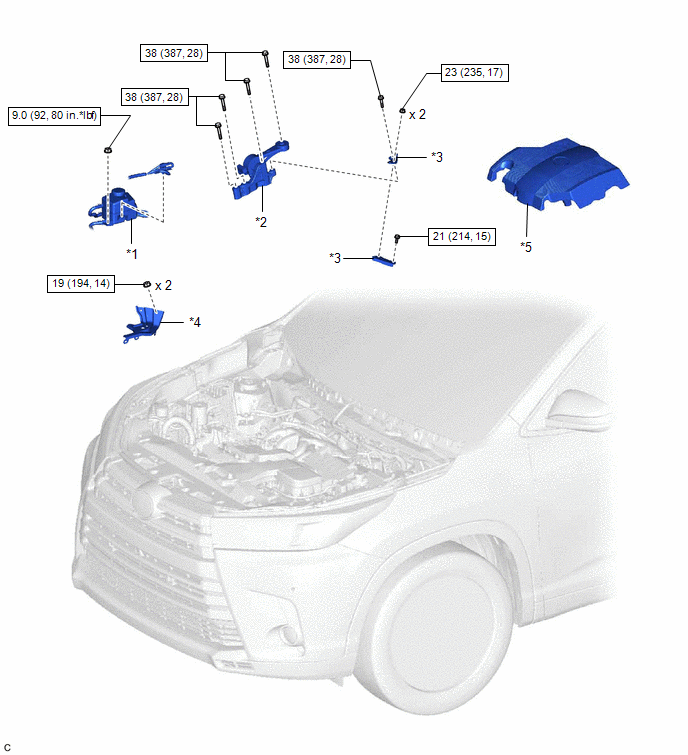

| Callout |
Description |
Callout |
Description |
| *1 |
BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
*2 |
ENGINE MOVING CONTROL ROD BRACKET |
| *3 |
NO. 2 ENGINE MOUNTING STAY RH |
*4 |
RESERVOIR BRACKET |
| *5 |
V-BANK COVER SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

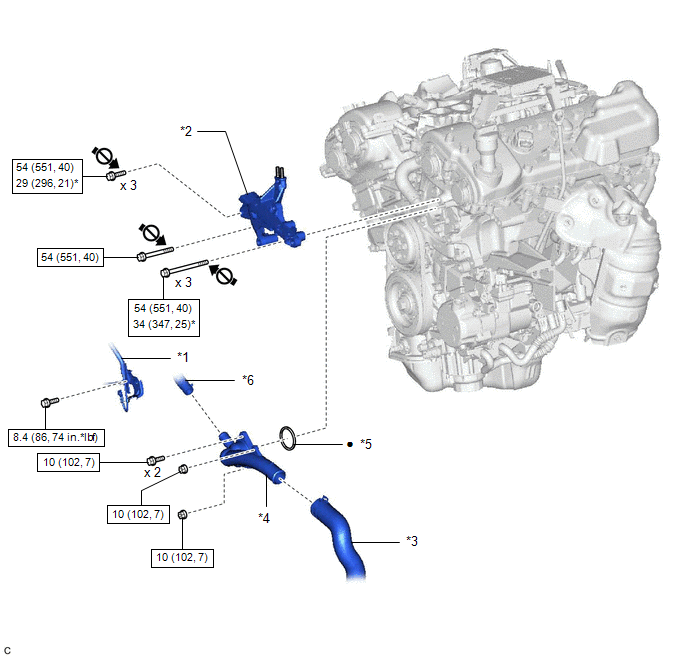

| Callout |
Description |
Callout |
Description |
| *1 |
ENGINE WIRE |
*2 |
FRONT NO. 1 ENGINE MOUNTING BRACKET LH |
| *3 |
NO. 2 RADIATOR HOSE |
*4 |
WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
| *5 |
GASKET |
*6 |
WATER BY-PASS HOSE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
|
Do not apply lubricants to the threaded parts |
