Removal [11/2016 - ]: Procedure
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- DRAIN ENGINE COOLANT (for Engine)
See step 1
- REMOVE TAIL EXHAUST PIPE ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE HEATER COVER
Refer to PROCEDURE - Step 7
- REMOVE CENTER EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
Refer to PROCEDURE - Step 8
- REMOVE EXHAUST PIPE GAS CONTROL ACTUATOR SUB-ASSEMBLY

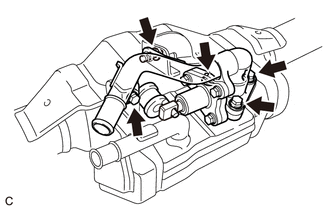

- Remove the 5 bolts and exhaust pipe gas control actuator sub-assembly from the center exhaust pipe assembly (TWC: Rear Catalyst).NOTE:
- Do not apply excessive force to the exhaust by-pass pipe when removing the exhaust pipe gas control actuator sub-assembly.
- When removing the exhaust pipe gas control actuator sub-assembly, use caution because engine coolant may spray from the exhaust heat recirculation system.
- Remove the exhaust by-pass pipe from the exhaust pipe gas control actuator sub-assembly.
- Remove the 5 bolts and exhaust pipe gas control actuator sub-assembly from the center exhaust pipe assembly (TWC: Rear Catalyst).
