Components [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

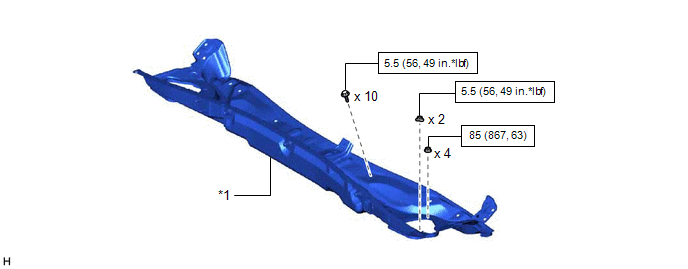

Fig 1: Mass Air Flow Meter Replacement Components With Torque Specifications (1 Of 2)
GTY451645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OUTER COWL TOP PANEL SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

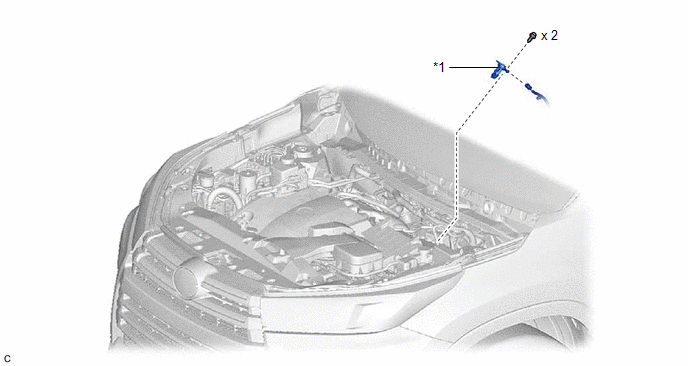

Fig 1: Mass Air Flow Meter Replacement Components (2 Of 2)
GTY700901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MASS AIR FLOW METER SUB-ASSEMBLY - -
