Components [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR SURGE TANK TO INTAKE MANIFOLD GASKET	*2	INTAKE AIR SURGE TANK ASSEMBLY
*3	NO. 2 SURGE TANK STAY	*4	PURGE VALVE (PURGE VSV)
*5	V-BANK COVER SUB-ASSEMBLY	*6	VENTILATION HOSE
*7	NO. 1 FUEL VAPOR FEED HOSE	*8	WATER HOSE CLAMP
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Do not apply lubricants (to the threaded parts)	-	-

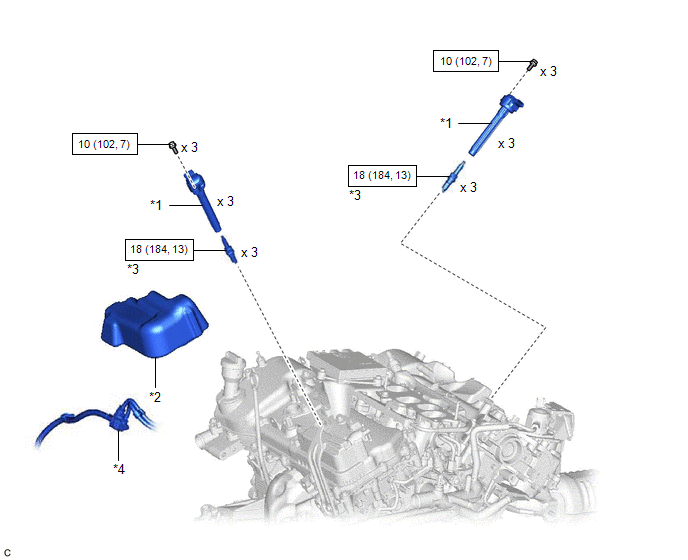

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	IGNITION COIL ASSEMBLY	*2	NO. 1 ENGINE COVER
*3	SPARK PLUG	*4	NO. 4 ENGINE WIRE
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
