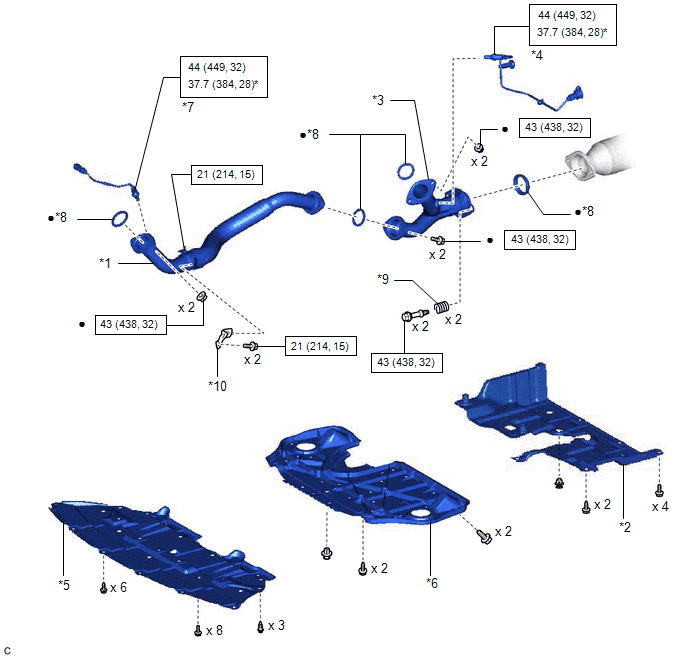

Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
| *1 | FRONT EXHAUST PIPE ASSEMBLY | *2 | FRONT FLOOR COVER LH |
| *3 | FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY | *4 | HEATED OXYGEN SENSOR (for Bank 1) |
| *5 | NO. 1 ENGINE UNDER COVER | *6 | NO. 2 ENGINE UNDER COVER |
| *7 | HEATED OXYGEN SENSOR (for Bank 2) | *8 | GASKET |
| *9 | COMPRESSION SPRING | *10 | EXHAUST PIPE SUPPORT BRACKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | - | - |
