Installation [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL VVT SENSOR (for Exhaust Side of Bank 2)
    1. Apply a light coat of engine oil to the O-ring of the VVT sensor.
      NOTE:

      If reusing the VVT sensor, be sure to inspect the O-ring.

    2. Clean the bolt and bolt hole.
    3. Apply adhesive to 2 or 3 threads at the end of the bolt.
      GTY445334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Adhesive

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

    4. Install the VVT sensor to the cylinder head cover sub-assembly LH with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:
      • If the VVT sensor has been struck or dropped, replace it.
      • Make sure that the O-ring is not cracked or moved out of place when installing the VVT sensor.
    5. Connect the VVT sensor connector.
  2. INSTALL VVT SENSOR (for Intake Side of Bank 2)
    1. Apply a light coat of engine oil to the O-ring of the VVT sensor.
      NOTE:

      If reusing the VVT sensor, be sure to inspect the O-ring.

    2. Clean the bolt and bolt hole.
    3. Apply adhesive to 2 or 3 threads at the end of the bolt.
      GTY445334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Adhesive

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

    4. Install the VVT sensor to the cylinder head cover sub-assembly LH with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:
      • If the VVT sensor has been struck or dropped, replace it.
      • Make sure that the O-ring is not cracked or moved out of place when installing the VVT sensor.
    5. Connect the VVT sensor connector.
  3. INSTALL VVT SENSOR (for Exhaust Side of Bank 1)
    1. Apply a light coat of engine oil to the O-ring of the VVT sensor.
      NOTE:

      If reusing the VVT sensor, be sure to inspect the O-ring.

    2. Clean the bolt and bolt hole.
    3. Apply adhesive to 2 or 3 threads at the end of the bolt.
      GTY445334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Adhesive

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

    4. Temporarily install the VVT sensor to the cylinder head cover sub-assembly with the bolt.
      NOTE:
      • If the VVT sensor has been struck or dropped, replace it.
      • Make sure that the O-ring is not cracked or moved out of place when installing the VVT sensor.
    5. Using a 10 mm union nut wrench, tighten the bolt.

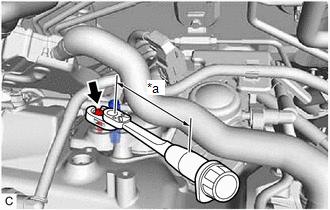

      GTY720121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length

      Specified tightening torque

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [11/2016 - ]

      • When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

        8.8 N*m (90 kgf*cm, 78 in.*lbf)

    6. Connect the VVT sensor connector.
    7. Connect the No. 3 ignition coil assembly connector.
  4. INSTALL VVT SENSOR (for Intake Side of Bank 1)
    1. Apply a light coat of engine oil to the O-ring of the VVT sensor.
      NOTE:

      If reusing the VVT sensor, be sure to inspect the O-ring.

    2. Clean the bolt and bolt hole.
    3. Apply adhesive to 2 or 3 threads at the end of the bolt.
      GTY445334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Adhesive

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

    4. Install the VVT sensor to the cylinder head cover sub-assembly with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:
      • If the VVT sensor has been struck or dropped, replace it.
      • Make sure that the O-ring is not cracked or moved out of place when installing the VVT sensor.
    5. Connect the VVT sensor connector.
  5. INSTALL INTAKE AIR SURGE TANK ASSEMBLY

    Refer to INSTALLATION [11/2016 - ]

  6. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 5
