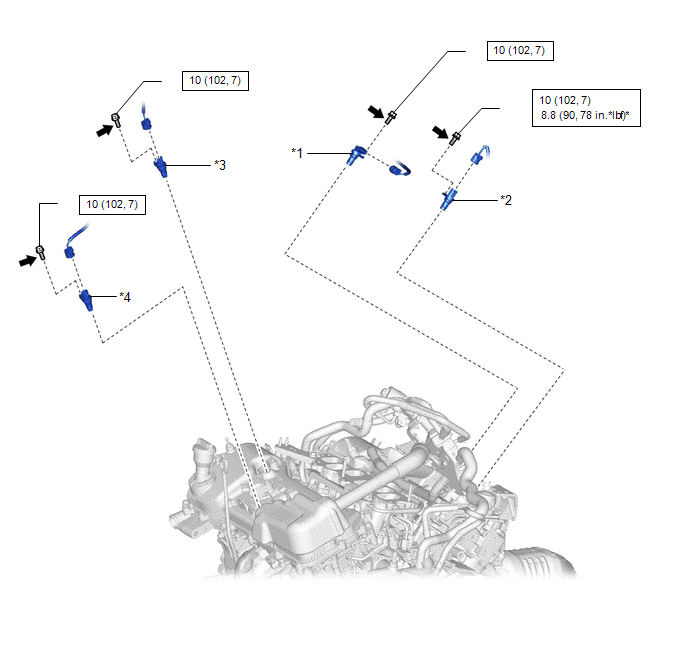

Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
| *1 | VVT SENSOR (for Intake Side of Bank 1) | *2 | VVT SENSOR (for Exhaust Side of Bank 1) |
| *3 | VVT SENSOR (for Intake Side of Bank 2) | *4 | VVT SENSOR (for Exhaust Side of Bank 2) |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with a union nut wrench | |
| Adhesive 1324 | * | Precoated part |
