Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
DECK BOARD ASSEMBLY |
*2 |
NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
OUTER COWL TOP PANEL SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

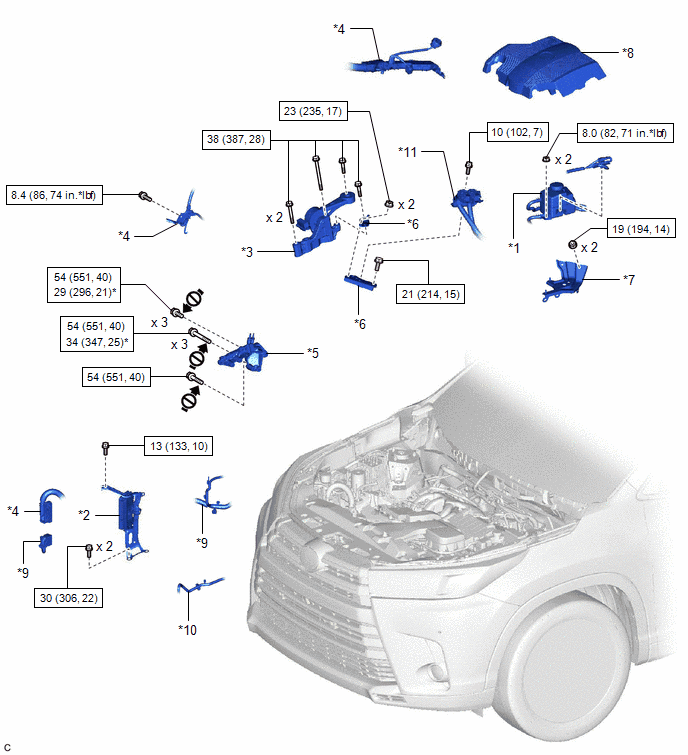

| *1 |
BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
*2 |
ECM |
| *3 |
ENGINE MOVING CONTROL ROD BRACKET |
*4 |
ENGINE WIRE |
| *5 |
FRONT NO. 1 ENGINE MOUNTING BRACKET LH |
*6 |
NO. 2 ENGINE MOUNTING STAY RH |
| *7 |
RESERVOIR BRACKET |
*8 |
V-BANK COVER SUB-ASSEMBLY |
| *9 |
ENGINE ROOM MAIN WIRE |
*10 |
SUCTION HOSE SUB-ASSEMBLY |
| *11 |
WIRE HARNESS CLAMP BRACKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with SST |
|
Do not apply lubricants to the threaded parts |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

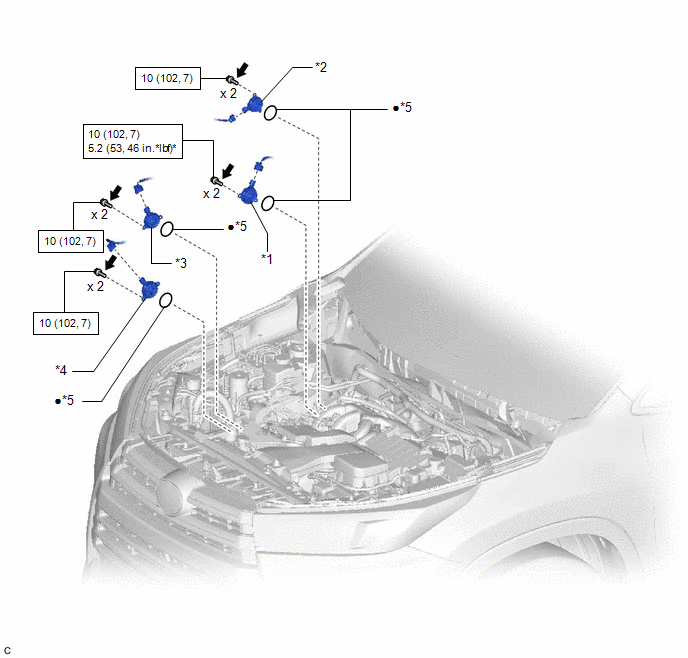

| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) |
| *3 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) |
*4 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) |
| *5 |
O-RING |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
|
Adhesive 1324 |
| * |
Precoated part |
- |
- |
