Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [11/2016 - ]

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

  5. REMOVE FRONT WHEEL RH
  6. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 17

  7. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  8. REMOVE ECM

    See step  5

  9. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [02/2014 - ]

  10. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  11. SEPARATE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

    Refer to PROCEDURE - Step 32

  12. REMOVE RESERVOIR BRACKET

    Refer to PROCEDURE - Step 33

  13. REMOVE NO. 2 ENGINE MOUNTING STAY RH

    Refer to PROCEDURE - Step 14

  14. REMOVE ENGINE MOVING CONTROL ROD BRACKET

    Refer to PROCEDURE - Step 35

  15. DISCONNECT ENGINE WIRE

    Refer to PROCEDURE - Step 9

  16. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH

    Refer to PROCEDURE - Step 10

  17. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)

    See step  17

  18. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1)

    See step  18

  19. SET NO. 1 CYLINDER TO TDC/COMPRESSION

    See step  19

  20. REMOVE CAMSHAFT TIMING GEAR BOLT

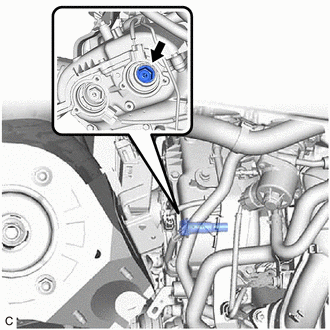

    1. While holding the crankshaft pulley, remove the camshaft timing gear bolt.
      GTY692620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If the camshaft timing gear bolt has been struck or dropped, replace it.
      • Do not turn the crankshaft pulley after removing the camshaft timing gear bolt.
