Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Camshaft Oil Control Valve (for Exhaust Side of Bank 2) Replacement Components With Torque Specifications (1 Of 3)
| Callout | Description | Callout | Description |
| *1 | DECK BOARD ASSEMBLY | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | NEGATIVE AUXILIARY BATTERY TERMINAL | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

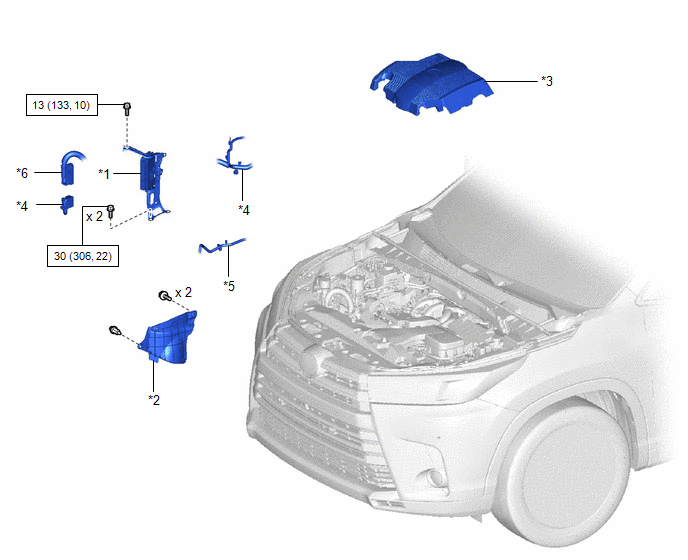

Fig 1: Camshaft Oil Control Valve (for Exhaust Side of Bank 2) Replacement Components With Torque Specifications (2 Of 3)
| Callout | Description | Callout | Description |
| *1 | ECM | *2 | FRONT FENDER APRON SEAL RH |
| *3 | V-BANK COVER SUB-ASSEMBLY | *4 | ENGINE ROOM MAIN WIRE |
| *5 | SUCTION HOSE SUB-ASSEMBLY | *6 | ENGINE WIRE |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

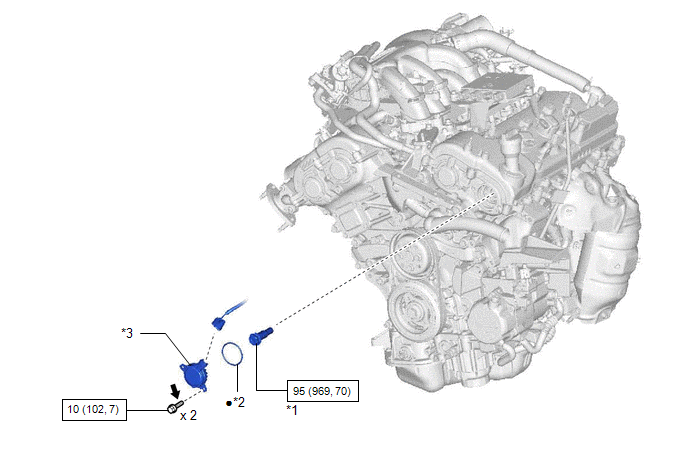

Fig 1: Camshaft Oil Control Valve (for Exhaust Side of Bank 2) Replacement Components With Torque Specifications (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | CAMSHAFT TIMING GEAR BOLT | *2 | O-RING |
| *3 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
