Terminals Of ECM [11/2016 - ]

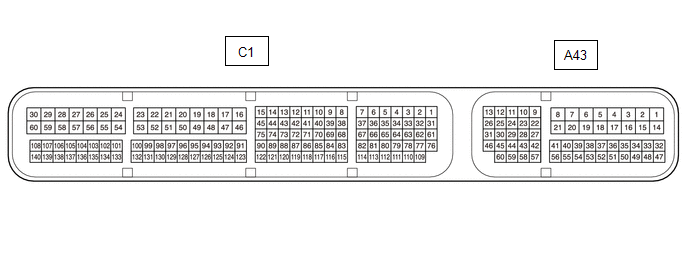

Fig 1: ECM Terminals Connector End Views

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard voltage, resistance and waveform between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals is also indicated. The result of checks should be compared with the standard voltage, resistance and waveform for each pair of the terminals as displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.

*: The ECM terminal voltage is constant regardless of the output voltage from the sensor.

1. WAVEFORM 1
   Fig 2: Waveform 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAN COMMUNICATION SIGNAL (REFERENCE)



   ECM Terminal Name	Between CAN+ and E1, or CANH and E1
   Tester Range	1 V/DIV., 10 μs./DIV.
   Condition	Power switch on (IG)

   HINT:

   The waveform varies depending on the CAN communication signal.

2. WAVEFORM 2
   Fig 3: Waveform 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   ENGINE SPEED SIGNAL



   ECM Terminal Name	Between TACH and E1
   Tester Range	5 V/DIV., 10 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

3. WAVEFORM 3
   Fig 4: Waveform 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAN COMMUNICATION SIGNAL (REFERENCE)



   ECM Terminal Name	Between CAN- and E1, or CANL and E1
   Tester Range	1 V/DIV., 10 μs./DIV.
   Condition	Power switch on (IG)

   HINT:

   The waveform varies depending on the CAN communication signal.

4. WAVEFORM 4
   Fig 5: Waveform 4

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAMSHAFT REVOLUTION SIGNAL FROM INVERTER WITH CONVERTER ASSEMBLY



   ECM Terminal Name	Between G2O and E1
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

5. WAVEFORM 5
   Fig 6: Waveform 5

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   COOLING FAN CONTROL SIGNAL



   ECM Terminal Name	Between RFC and E1
   Tester Range	1 V/DIV., 20 ms./DIV.
   Condition	Power switch on (IG), A/C ON (MAX Cool)

   HINT:

   The duty ratio varies depending on the engine coolant temperature.

6. WAVEFORM 6
   Fig 7: Waveform 6

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   IGNITION COIL ASSEMBLY SIGNAL (IGT AND IGF SIGNAL)



   ECM Terminal Name	CH1: IGT1, 3 or 5 and E1 CH2: IGF1 and E1
   	CH1: IGT2, 4 or 6 and E1 CH2: IGF2 and E1
   Tester Range	2 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

7. WAVEFORM 7
   Fig 8: Waveform 7

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   EGR VALVE ASSEMBLY SIGNAL (EGR1, EGR3)



   ECM Terminal Name	CH1: EGR1 and E1 CH2: EGR3 and E1
   Tester Range	10 V/DIV., 20 ms./DIV.
   Condition	EGR valve operating

8. WAVEFORM 8
   Fig 9: Waveform 8

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   EGR VALVE ASSEMBLY SIGNAL (EGR2, EGR4)



   ECM Terminal Name	CH1: EGR2 and E1 CH2: EGR4 and E1
   Tester Range	10 V/DIV., 20 ms./DIV.
   Condition	EGR valve operating

9. WAVEFORM 9
   Fig 10: Waveform 9

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   FUEL INJECTOR ASSEMBLY (FOR DIRECT INJECTION) SIGNAL AND INJECTION CONFIRMATION SIGNAL



   ECM Terminal Name	CH1: Between #1 or #4 and E1 CH2: Between INJ1 and E1
   	CH1: Between #2 or #5 and E1 CH2: Between INJ2 and E1
   	CH1: Between #3 or #6 and E1 CH2: Between INJ3 and E1
   Tester Range	2 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   • The wavelength becomes shorter as the engine speed increases.
   • When the direct injection injectors are operating, Direct is displayed for Injection Way of the Data List.
10. WAVEFORM 10
    Fig 11: Waveform 10

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    AIR FUEL RATIO SENSOR (SENSOR 1) HEATER OPERATION SIGNAL



    ECM Terminal Name	Between HA1A and E04, or HA2A and E05
    Tester Range	5 V/DIV., 10 ms./DIV.
    Condition	Idling with cold engine

11. WAVEFORM 11
    Fig 12: Waveform 11

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR EXHAUST CAMSHAFT) OPERATION SIGNAL



    ECM Terminal Name	Between OE1+ and OE1-, or OE2+ and OE2-
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling

12. WAVEFORM 12
    Fig 13: Waveform 12

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR INTAKE CAMSHAFT) OPERATION SIGNAL



    ECM Terminal Name	Between OC1+ and OC1-, or OC2+ and OC2-
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling

13. WAVEFORM 13
    Fig 14: Waveform 13

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    FUEL INJECTOR ASSEMBLY (FOR PORT INJECTION) SIGNAL



    ECM Terminal Name	Between #10 (to #60) and E1
    Tester Range	20 V/DIV., 20 ms./DIV.
    Condition	Idling, engine coolant temperature 60°C or less

    HINT:

    • The wavelength becomes shorter as the engine speed increases.
    • When the direct injection injectors are operating, Port is displayed for Injection Way of the Data List.
14. WAVEFORM 14
    Fig 15: Waveform 14

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    PURGE VSV OPERATION SIGNAL



    ECM Terminal Name	Between PRG and E1
    Tester Range	10 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine, under purge control

    HINT:

    If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

15. WAVEFORM 15
    Fig 16: Waveform 15

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR NEGATIVE TERMINAL SIGNAL



    ECM Terminal Name	Between M- and ME01
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

16. WAVEFORM 16
    Fig 17: Waveform 16

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR POSITIVE TERMINAL SIGNAL



    ECM Terminal Name	Between M+ and ME01
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

17. WAVEFORM 17
    Fig 18: Waveform 17

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    FUEL PUMP ASSEMBLY (FOR HIGH PRESSURE SIDE) SIGNAL



    ECM Terminal Name	CH1: Between FPD and E1 CH2: Between FPF and E1
    Tester Range	2 V/DIV., 5 ms./DIV.
    Condition	Idling with warm engine

18. WAVEFORM 18
    Fig 19: Waveform 18

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CRANKSHAFT POSITION SENSOR SIGNAL



    ECM Terminal Name	Between NE+ and NE-
    Tester Range	2 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

19. WAVEFORM 19
    Fig 20: Waveform 19

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    VVT SENSOR (FOR INTAKE CAMSHAFT) SIGNAL



    ECM Terminal Name	CH1: Between VV1+ and VV1- CH2: Between VV2+ and VV2-
    Tester Range	5 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

20. WAVEFORM 20
    Fig 21: Waveform 20

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    KNOCK CONTROL SENSOR SIGNAL



    ECM Terminal Name	Between KNK1 and EKNK, or KNK2 and EKN2
    Tester Range	1 V/DIV., 1 ms./DIV.
    Condition	Engine speed maintained at 2500 rpm after warming up engine

    HINT:

    • The wavelength becomes shorter as the engine speed increases.
    • The waveforms and amplitudes displayed differ slightly depending on the vehicle condition.
21. WAVEFORM 21
    Fig 22: Waveform 21

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    VVT SENSOR (FOR EXHAUST CAMSHAFT) SIGNAL



    ECM Terminal Name	CH1: Between EV1+ and EV1- CH2: Between EV2+ and EV2-
    Tester Range	5 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

22. WAVEFORM 22
    Fig 23: Waveform 22

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    HEATED OXYGEN SENSOR (SENSOR 2) SIGNAL



    ECM Terminal Name	Between OX1B and EX1B, or OX2B and EX2B
    Tester Range	0.2 V/DIV., 200 ms./DIV.
    Condition	Engine speed maintained at 2500 rpm for 2 minutes after warming up engine

    HINT:

    In the Data List, item O2S B1S2 and O2S B2S2 shows the ECM values from the heated oxygen sensor.

23. WAVEFORM 23
    Fig 24: Waveform 23

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    MASS AIR FLOW METER SUB-ASSEMBLY SIGNAL



    ECM Terminal Name	Between VG and E2G
    Tester Range	1 V/DIV., 100 μs./DIV.
    Condition	Power switch on (IG)
