Removal [02/2014 - 11/2016]: Procedure

  1. REMOVE HEATED OXYGEN SENSOR (for Bank 2)
    1. Disengage the 3 wire harness clamps.
      GTY451422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the heated oxygen sensor connector.

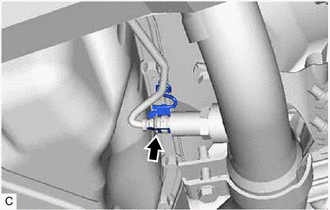

    3. Remove the wire harness clamp bracket from the heated oxygen sensor.
      GTY428494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

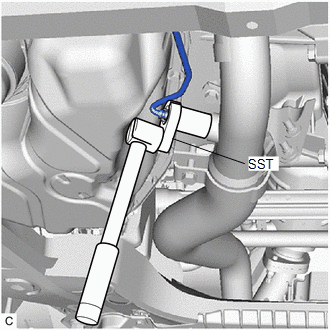

    4. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
      GTY437103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

  2. REMOVE FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 4

  3. REMOVE HEATED OXYGEN SENSOR (for Bank 1)

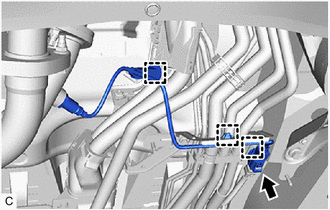

    1. Disengage the 3 wire harness clamps.
      GTY451421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the heated oxygen sensor connector.

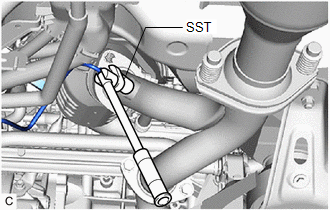

    3. Using SST, remove the heated oxygen sensor from the front No. 3 exhaust pipe sub-assembly.
      • SST: 09224-00010
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

      GTY451078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
