Removal [02/2014 - 11/2016]: Procedure

  1. REMOVE EGR DELIVERY CHAMBER

    Refer to REMOVAL [02/2014 - 11/2016]

  2. REMOVE CAMSHAFT POSITION SENSOR (for Bank 1)
    1. Disconnect the camshaft position sensor connector.

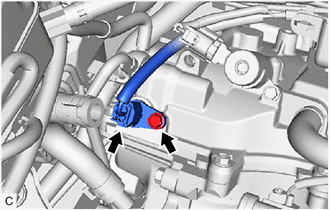

      GTY425312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
      NOTE:

      If the camshaft position sensor has been struck or dropped, replace it.

  3. REMOVE CAMSHAFT POSITION SENSOR (for Bank 2)
    1. Disconnect the camshaft position sensor connector.

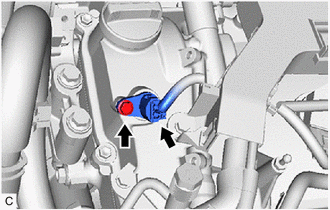

      GTY425313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly LH.
      NOTE:

      If the camshaft position sensor has been struck or dropped, replace it.
