Removal [02/2014 - 11/2016]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2016]

  2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1)
    1. Disconnect the camshaft timing oil control valve assembly connector.

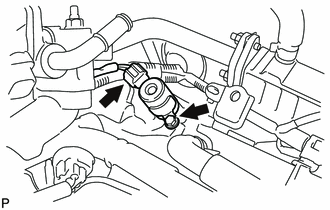

      GTY317780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly.
      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with the cylinder head cover sub-assembly).
      • If the camshaft timing oil control valve assembly has been struck or dropped, replace it.
    3. Remove the O-ring from the camshaft timing oil control valve assembly.
      GTY425092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2)
    1. Disconnect the camshaft timing oil control valve assembly connector.

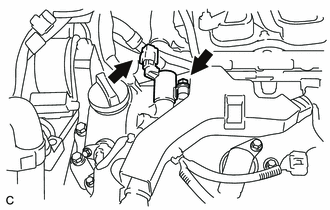

      GTY304385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly LH.
      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with the cylinder head cover sub-assembly LH).
      • If the camshaft timing oil control valve assembly has been struck or dropped, replace it.
    3. Remove the O-ring from the camshaft timing oil control valve assembly.
      GTY425094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
