Removal [02/2014 - 11/2016]: Procedure

  1. REMOVE HYBRID VEHICLE TRANSAXLE ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2015] , or refer to REMOVAL [11/2015 - 11/2016]

  2. REMOVE TRANSMISSION INPUT DAMPER ASSEMBLY
    1. Using SST, hold the crankshaft pulley.
      GTY448235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-70011
        1. 09213-70020
      • SST: 09330-00021

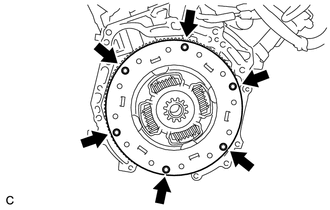

    2. Remove the 6 bolts and transmission input damper assembly from the flywheel sub-assembly.
      GTY299129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FLYWHEEL SUB-ASSEMBLY
    1. Using SST, hold the crankshaft pulley.
      GTY448235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-70011
        1. 09213-70020
      • SST: 09330-00021

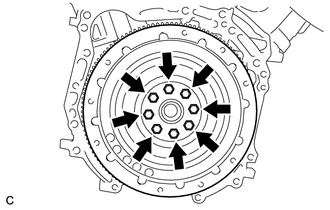

    2. Remove the 8 bolts and flywheel sub-assembly.
      GTY299130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR ENGINE OIL SEAL
    1. Using a knife, cut off the lip of the rear engine oil seal.
      GTY441044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Cut Position
    2. Using a screwdriver, pry out the rear engine oil seal.
      NOTE:
      • Do not damage the surface of the oil seal press fit hole or crankshaft.
      • After the removal, check that the crankshaft is not damaged. If it is damaged, smooth the surface with 400-grit sandpaper.

      HINT:

      Tape the screwdriver tip before use.
