Installation [02/2014 - 11/2016]: Procedure

1. Apply MP grease to the lip of a new rear engine oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

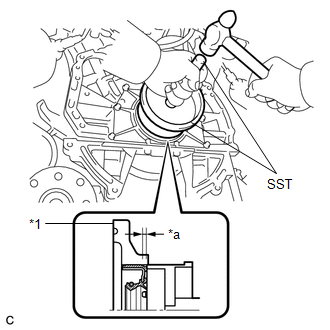

   *1	Rear Engine Oil Seal Retainer
   *a	Oil Seal Tap in Depth

2. Using SST and a hammer, tap in the rear engine oil seal.
   • SST: 09223-15030
   • SST: 09950-70010
     1. 09951-07150

   Oil Seal Tap in Depth

   -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

   NOTE:

   • Keep the lip free from foreign matter.
   • Do not tap in the rear engine oil seal at an angle.

1. Using SST, hold the crankshaft pulley.
   • SST: 09213-70011
     1. 09213-70020
   • SST: 09330-00021
2. Clean the 8 bolts and 8 bolt holes.
3. Apply adhesive to 2 or 3 threads at the end of each of the 8 bolts.

   Adhesive

   Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

4. Install the flywheel sub-assembly.

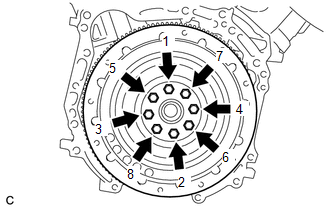

5. In several steps, install and uniformly tighten the 8 bolts in the sequence shown in the illustration.
   Fig 1: Tightening Sequence Of Flywheel Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 83 N*m (846 kgf*cm, 61 ft.*lbf)

   NOTE:

   Do not start the engine for at least 1 hour after installing the flywheel sub-assembly.

1. Using SST, hold the crankshaft pulley.
   • SST: 09213-70011
     1. 09213-70020
   • SST: 09330-00021
2. Install the transmission input damper assembly.

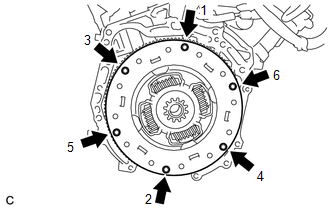

3. In several steps, install and uniformly tighten the 6 bolts in the sequence shown in the illustration.
   Fig 2: Tightening Sequence Of Transmission Input Damper Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

   NOTE:

   Take care not to insert the transmission input damper assembly in the wrong direction.

Refer to INSTALLATION [02/2014 - 11/2015] , or refer to INSTALLATION [11/2015 - 11/2016]
