Components [02/2014 - 11/2016]: Illustration

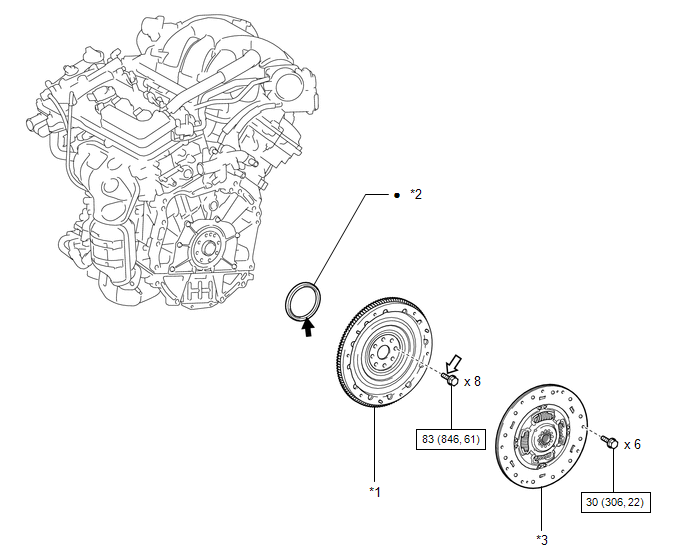

Fig 1: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FLYWHEEL SUB-ASSEMBLY	*2	REAR ENGINE OIL SEAL
*3	TRANSMISSION INPUT DAMPER ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
	MP Grease		Adhesive 1324
*	Precoated part	-	-
