Installation [02/2014 - 11/2016]: Procedure

1. Apply MP grease to the lip of a new timing chain case oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Oil Seal Tap in Depth

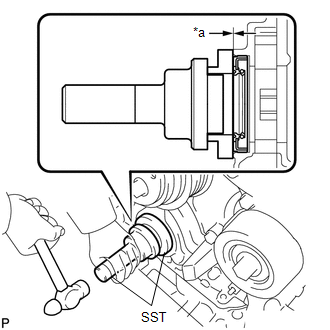

2. Using SST and a hammer, tap in the timing chain case oil seal until its surface is flush with the timing chain cover sub-assembly edge.
   • SST: 09223-22010
   • SST: 09506-35010

   Oil Seal Tap in Depth

   0 to 1.0 mm (0 to 0.0394 in.)

   NOTE:

   • Keep the lip free from foreign matter.
   • Do not tap in the timing chain case oil seal at an angle.

HINT:

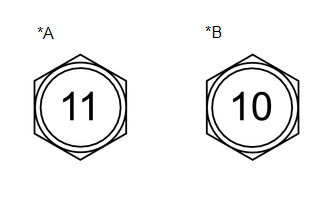

Type A and Type B can be distinguished by the number on the head of the crankshaft pulley set bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the pulley set key to the crankshaft.
2. Align the pulley set key with the key groove of the crankshaft pulley.
3. Using SST, install the crankshaft pulley bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold
   	Turn

   • SST: 09213-70011
     1. 09213-70020
   • SST: 09330-00021

   Type A

   Torque: 260 N*m (2651 kgf*cm, 192 ft.*lbf)

   Type B

   Torque: 250 N*m (2549 kgf*cm, 184 ft.*lbf)

Refer to INSTALLATION [02/2014 - 11/2016]
