Components [02/2014 - 11/2015]: Illustration

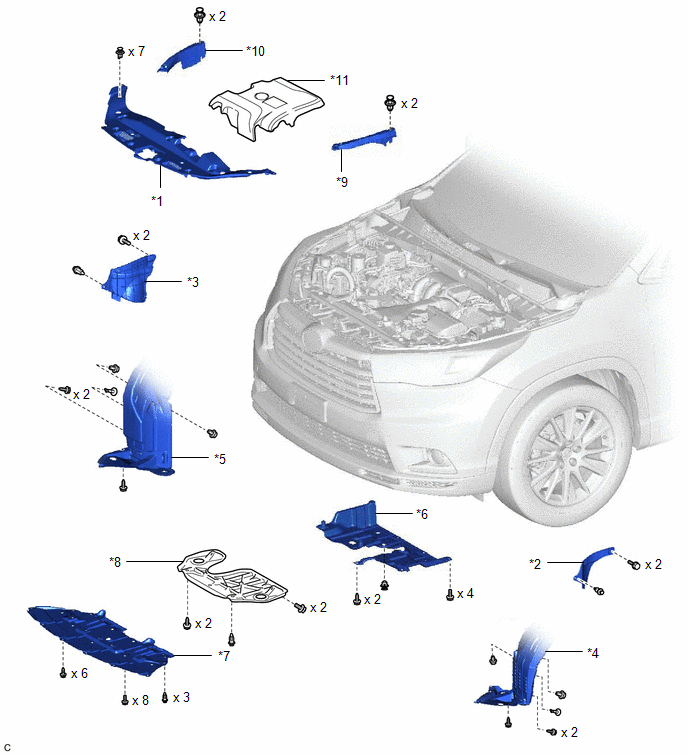

Fig 1: Engine Assembly & Engine Under Cover Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COOL AIR INTAKE DUCT SEAL	*2	FRONT FENDER APRON SEAL LH
*3	FRONT FENDER APRON SEAL RH	*4	FRONT FENDER LINER LH
*5	FRONT FENDER LINER RH	*6	FRONT FLOOR COVER LH
*7	NO. 1 ENGINE UNDER COVER	*8	NO. 2 ENGINE UNDER COVER
*9	RADIATOR SIDE DEFLECTOR SEAL LH	*10	RADIATOR SIDE SEAL RH
*11	V-BANK COVER SUB-ASSEMBLY	-	-

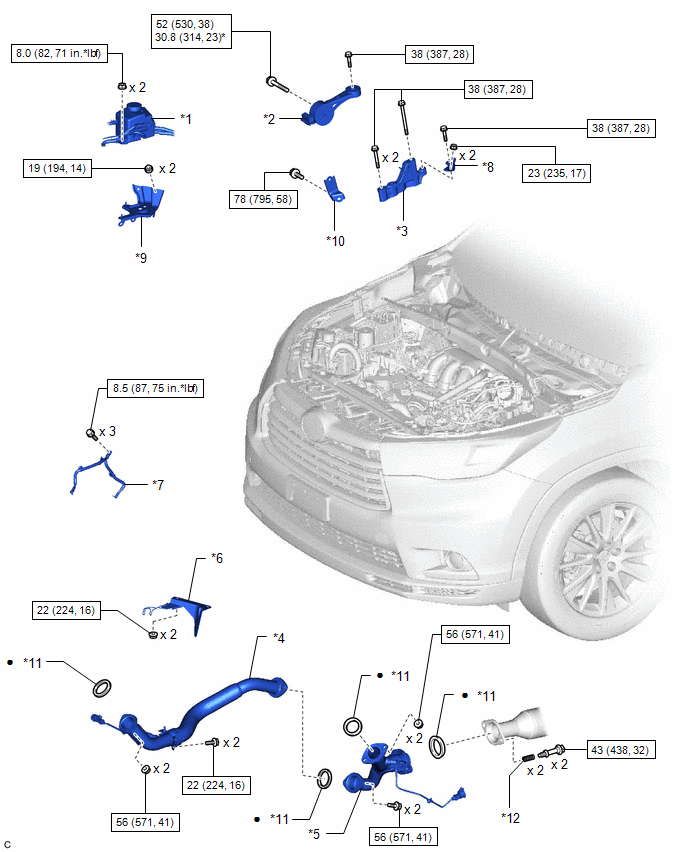

Fig 1: Engine Assembly Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY	*2	ENGINE MOVING CONTROL ROD
*3	ENGINE MOVING CONTROL ROD BRACKET	*4	FRONT EXHAUST PIPE ASSEMBLY
*5	FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY	*6	NO. 1 EXHAUST PIPE SUPPORT BRACKET
*7	NO. 2 EARTH WIRE	*8	NO. 2 ENGINE MOUNTING STAY RH (for Engine Mounting Stay Side)
*9	RESERVOIR BRACKET	*10	NO. 3 ENGINE MOUNTING STAY RH
*11	GASKET	*12	COMPRESSION SPRING
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
*	For use with SST	-	-

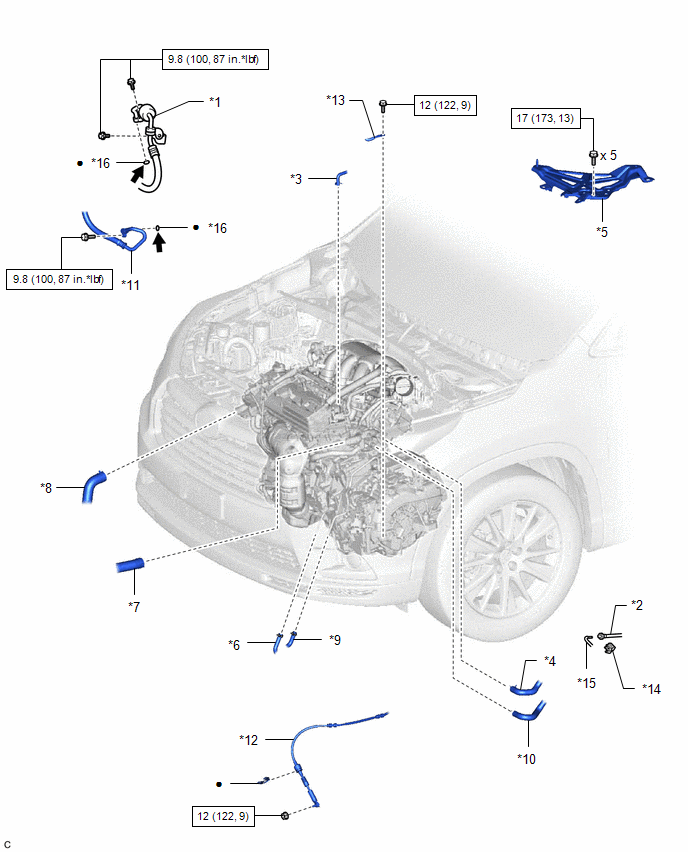

Fig 1: Engine Assembly Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	DISCHARGE HOSE SUB-ASSEMBLY	*2	FUEL TUBE SUB-ASSEMBLY
*3	FUEL VAPOR FEED HOSE ASSEMBLY	*4	WATER HOSE SUB-ASSEMBLY
*5	INVERTER TRAY BRACKET SUB-ASSEMBLY	*6	NO. 1 MOTOR COOLING HOSE
*7	NO. 1 RADIATOR HOSE	*8	NO. 2 RADIATOR HOSE
*9	NO. 3 MOTOR COOLING HOSE	*10	NO. 3 AIR CONDITIONING ACCESSORY ASSEMBLY
*11	SUCTION HOSE SUB-ASSEMBLY	*12	TRANSMISSION CONTROL CABLE ASSEMBLY
*13	NO. 3 EARTH WIRE	*14	NO. 1 FUEL PIPE CLAMP
*15	FUEL MAIN TUBE	*16	O-RING
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
	Compressor oil ND-OIL 11 or equivalent	-	-

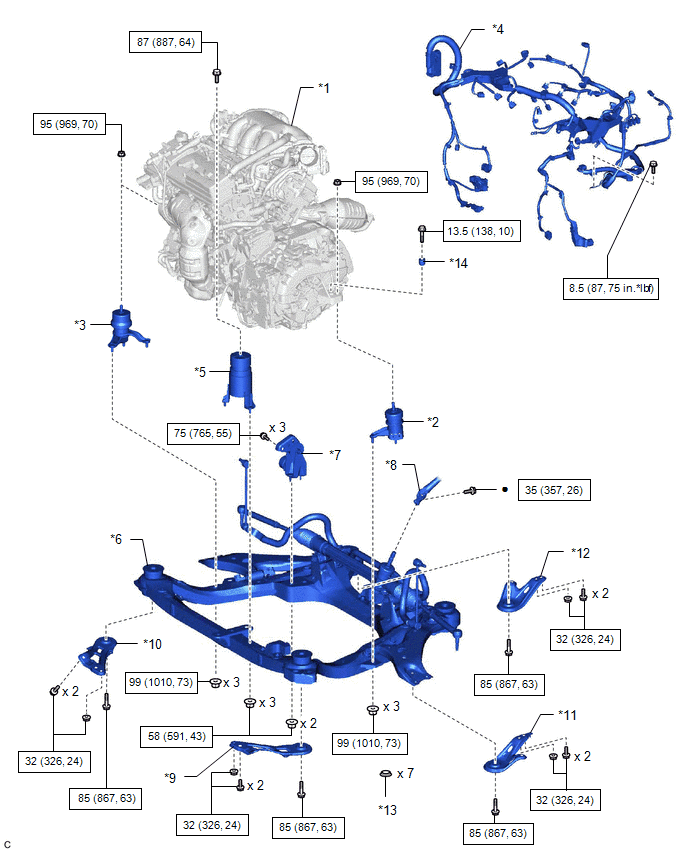

Fig 1: Engine Assembly Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ENGINE ASSEMBLY WITH TRANSAXLE	*2	ENGINE MOUNTING INSULATOR LH
*3	ENGINE MOUNTING INSULATOR RH	*4	ENGINE WIRE
*5	FRONT ENGINE MOUNTING INSULATOR	*6	FRONT FRAME ASSEMBLY
*7	REAR ENGINE MOUNTING INSULATOR ASSEMBLY	*8	STEERING INTERMEDIATE SHAFT ASSEMBLY
*9	FRAME SIDE PLATE LH	*10	FRAME SIDE PLATE RH
*11	FRONT SUSPENSION MEMBER REAR BRACE LH	*12	FRONT SUSPENSION MEMBER REAR BRACE RH
*13	HOLE PLUG	*14	HV TRANSAXLE MASS DAMPER
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

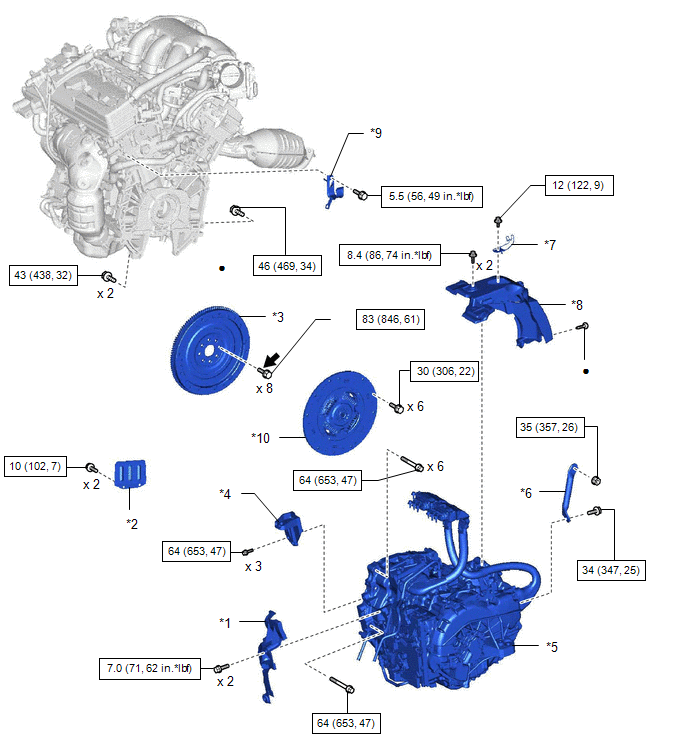

Fig 1: Engine Assembly Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AUTOMATIC TRANSMISSION CASE COVER	*2	FLYWHEEL HOUSING UNDER COVER
*3	FLYWHEEL SUB-ASSEMBLY	*4	FRONT ENGINE MOUNTING BRACKET
*5	HYBRID VEHICLE TRANSAXLE ASSEMBLY	*6	MANIFOLD STAY
*7	NO. 2 TRANSMISSION CONTROL CABLE BRACKET	*8	NO. 3 AUTOMATIC TRANSMISSION CASE COVER
*9	RADIATOR PIPE CLAMP	*10	TRANSMISSION INPUT DAMPER ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
	Adhesive 1324	*	Precoated part
