Components [02/2014 - 11/2016]: Illustration

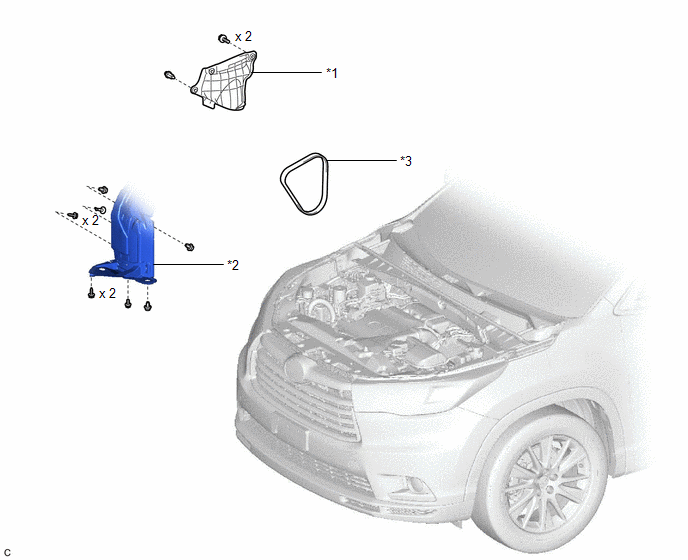

Fig 1: Drive Belt Replacement Components
GTY453567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT FENDER APRON SEAL RH *2 FRONT FENDER LINER RH
*3 V-RIBBED BELT - -
