Components [02/2014 - 11/2016]: Illustration

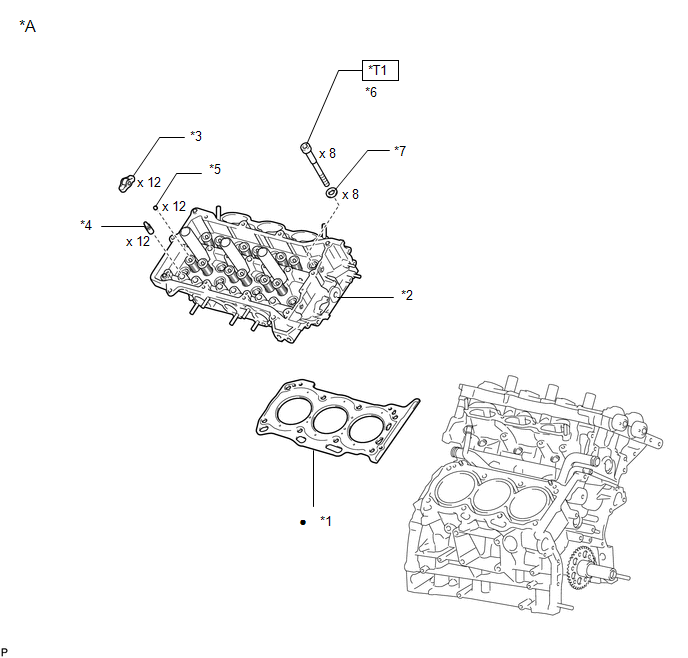

Fig 1: Cylinder Head Gasket Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Bank 1	-	-
*1	CYLINDER HEAD GASKET RH	*2	CYLINDER HEAD SUB-ASSEMBLY RH
*3	NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY	*4	VALVE LASH ADJUSTER ASSEMBLY
*5	VALVE STEM CAP	*6	CYLINDER HEAD SET BOLT
*7	PLATE WASHER	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
*T1	1st: 36 (367, 27) 2nd: Turn 90° 3rd: Turn 90°	-

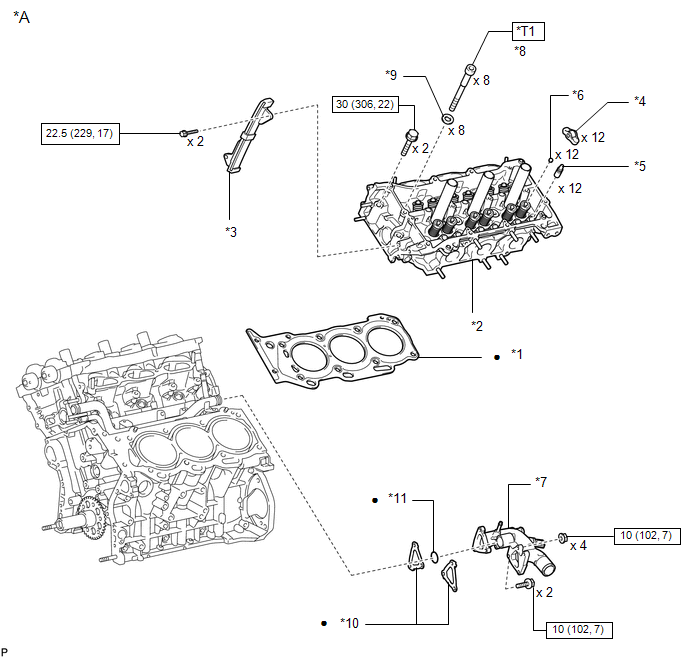

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Bank 2	-	-
*1	CYLINDER HEAD GASKET LH	*2	CYLINDER HEAD SUB-ASSEMBLY LH
*3	NO. 1 CHAIN VIBRATION DAMPER	*4	NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*5	VALVE LASH ADJUSTER ASSEMBLY	*6	VALVE STEM CAP
*7	WATER OUTLET	*8	CYLINDER HEAD SET BOLT
*9	PLATE WASHER	*10	GASKET
*11	O-RING	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
*T1	1st: 36 (367, 27) 2nd: Turn 90° 3rd: Turn 90°	-	-
