Components [02/2014 - 11/2016]: Illustration

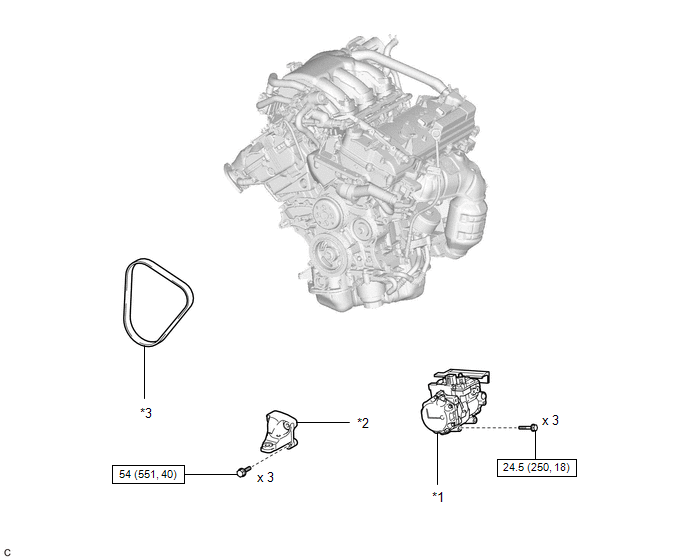

Fig 1: Camshaft Replacement Components With Torque Specifications (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COMPRESSOR WITH MOTOR ASSEMBLY	*2	ENGINE MOUNTING BRACKET RH
*3	V-RIBBED BELT	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Fig 1: Camshaft Replacement Components With Torque Specifications (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	EGR COOLER ASSEMBLY	*2	EGR DELIVERY CHAMBER
*3	INTAKE AIR SURGE TANK ASSEMBLY	*4	NO. 1 EGR PIPE
*5	NO. 2 EGR PIPE	*6	THROTTLE BODY BRACKET
*7	VENTILATION HOSE	*8	FUEL VAPOR FEED HOSE
*9	GASKET	*10	NO. 1 SURGE TANK STAY
*11	INTAKE AIR SURGE TANK GASKET	*12	NO. 2 WATER BY-PASS HOSE
*13	NO. 3 WATER BY-PASS HOSE	*14	NO. 6 WATER BY-PASS HOSE
*15	NO. 1 EGR COOLER BRACKET	*16	NO. 2 INTAKE MANIFOLD GASKET
*17	NO. 7 WATER BY-PASS HOSE	*18	NO. 8 WATER BY-PASS HOSE
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
	Do not apply lubricants (to the threaded parts)	-	-

Fig 1: Camshaft Replacement Components With Torque Specifications (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)	*2	EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)
*3	EXHAUST MANIFOLD TO HEAD GASKET	*4	EXHAUST MANIFOLD TO HEAD GASKET LH
*5	IGNITION COIL ASSEMBLY	*6	NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
*7	NO. 2 MANIFOLD STAY	*8	PURGE VALVE (PURGE VSV)
*9	V-RIBBED BELT TENSIONER ASSEMBLY	*10	WATER PUMP PULLEY
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

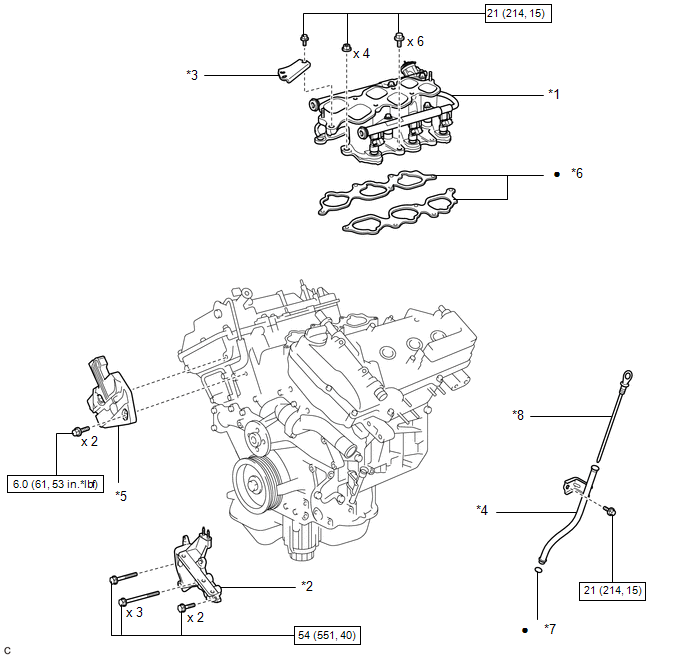

Fig 1: Camshaft Replacement Components With Torque Specifications (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	INTAKE MANIFOLD	*2	NO. 1 FRONT ENGINE MOUNTING BRACKET LH
*3	NO. 2 ENGINE MOUNTING STAY RH (for Intake Manifold Side)	*4	NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE
*5	NO. 2 TIMING GEAR COVER	*6	INTAKE MANIFOLD TO HEAD GASKET
*7	O-RING	*8	ENGINE OIL DIPSTICK GUIDE
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

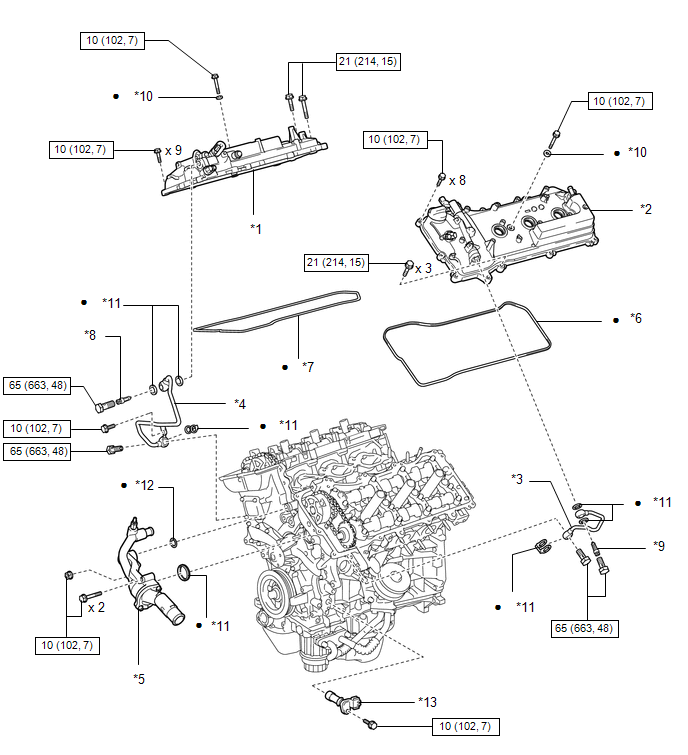

Fig 1: Camshaft Replacement Components With Torque Specifications (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CYLINDER HEAD COVER SUB-ASSEMBLY	*2	CYLINDER HEAD COVER SUB-ASSEMBLY LH
*3	NO. 1 OIL PIPE	*4	OIL PIPE
*5	WATER INLET HOUSING	*6	NO. 2 CYLINDER HEAD COVER GASKET
*7	CYLINDER HEAD COVER GASKET	*8	OIL CONTROL VALVE FILTER RH
*9	OIL CONTROL VALVE FILTER LH	*10	SEAL WASHER
*11	GASKET	*12	O-RING
*13	CRANKSHAFT POSITION SENSOR	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

Fig 1: Camshaft Replacement Components With Torque Specifications (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ENGINE OIL LEVEL DIPSTICK GUIDE	*2	NO. 1 OIL COOLER BRACKET
*3	OIL COOLER ASSEMBLY	*4	WATER BY-PASS PIPE SUB-ASSEMBLY
*5	NO. 4 WATER BY-PASS HOSE	*6	OIL COOLER PIPE
*7	OIL COOLER UNION BOLT	*8	O-RING
*9	GASKET	*10	HOSE CLAMP
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

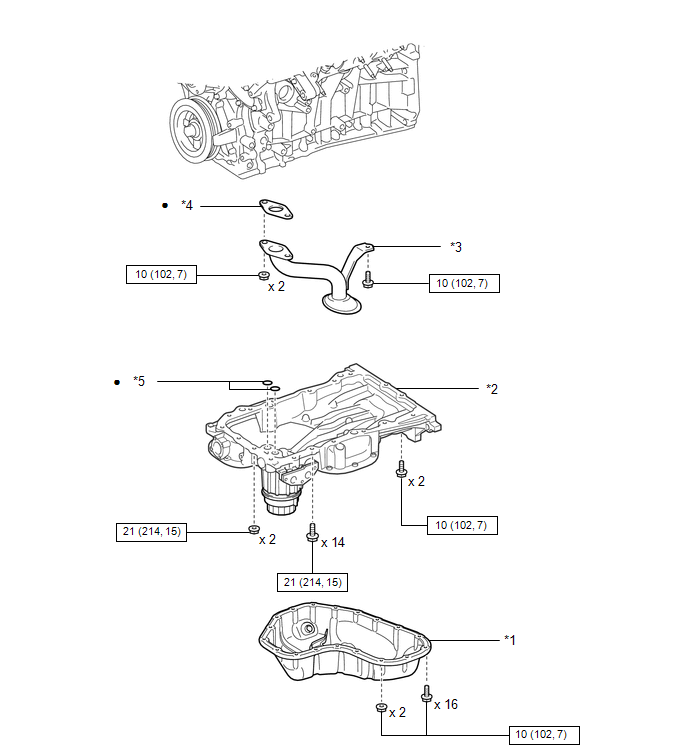

Fig 1: Camshaft Replacement Components With Torque Specifications (7 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 OIL PAN SUB-ASSEMBLY	*2	OIL PAN SUB-ASSEMBLY
*3	OIL STRAINER SUB-ASSEMBLY	*4	GASKET
*5	O-RING	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

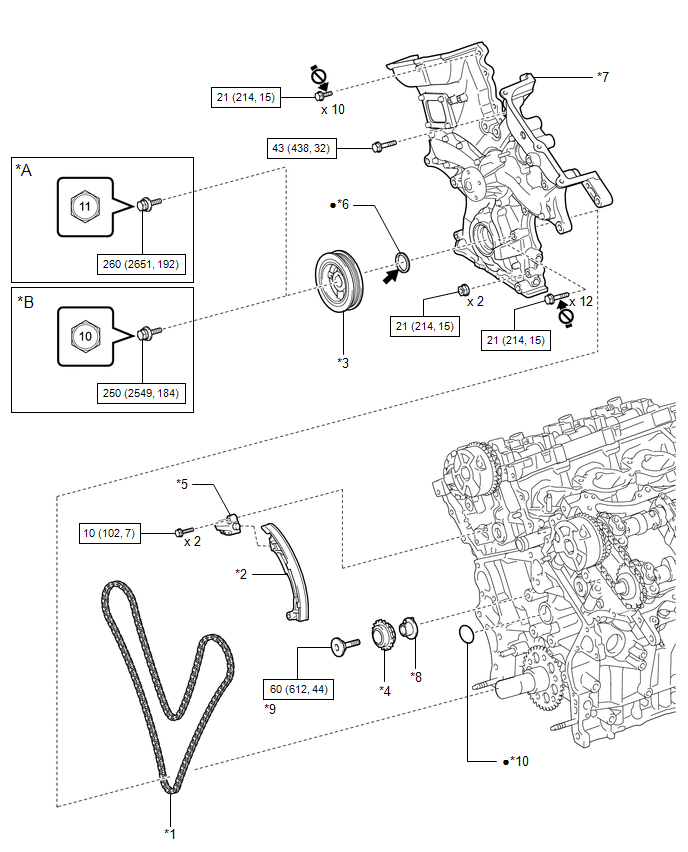

Fig 1: Camshaft Replacement Components With Torque Specifications (8 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*1	CHAIN SUB-ASSEMBLY	*2	CHAIN TENSIONER SLIPPER
*3	CRANKSHAFT PULLEY	*4	IDLE SPROCKET ASSEMBLY
*5	NO. 1 CHAIN TENSIONER ASSEMBLY	*6	TIMING CHAIN CASE OIL SEAL
*7	TIMING CHAIN COVER SUB-ASSEMBLY	*8	NO. 1 IDLE GEAR SHAFT
*9	NO. 2 IDLE GEAR SHAFT	*10	GASKET
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
	MP Grease		Do not apply lubricants to the threaded parts

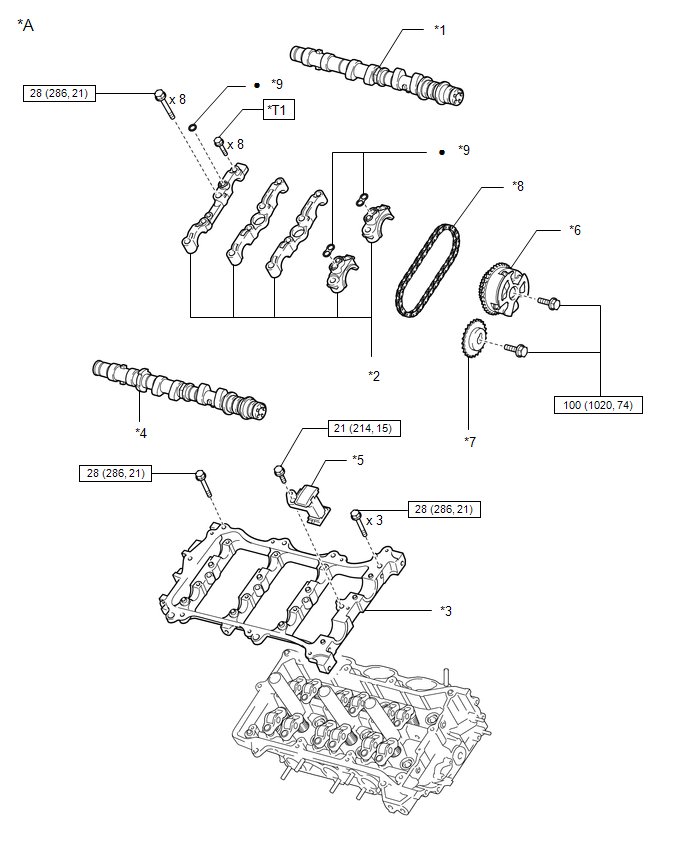

Fig 1: Camshaft Replacement Components With Torque Specifications (9 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Bank 1	-	-
*1	CAMSHAFT	*2	CAMSHAFT BEARING CAP
*3	CAMSHAFT HOUSING SUB-ASSEMBLY RH	*4	NO. 2 CAMSHAFT
*5	NO. 2 CHAIN TENSIONER ASSEMBLY	*6	CAMSHAFT TIMING GEAR ASSEMBLY
*7	CAMSHAFT TIMING SPROCKET	*8	NO. 2 CHAIN SUB-ASSEMBLY
*9	GASKET	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
*T1	1st: 10 (102, 7) 2nd: 16 (163, 12)	-	-

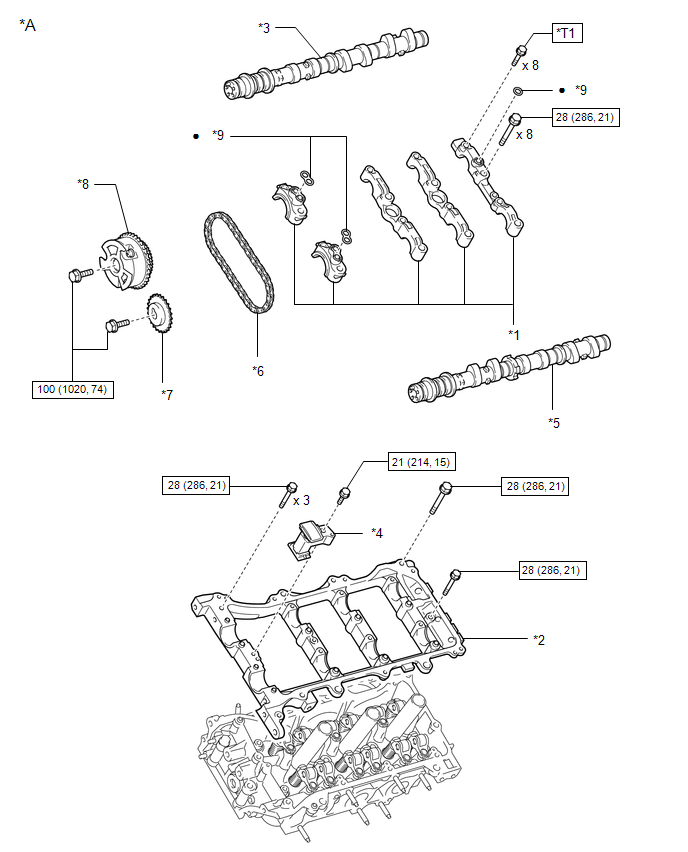

Fig 1: Camshaft Replacement Components With Torque Specifications (10 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Bank 2	-	-
*1	CAMSHAFT BEARING CAP	*2	CAMSHAFT HOUSING SUB-ASSEMBLY LH
*3	NO. 3 CAMSHAFT	*4	NO. 3 CHAIN TENSIONER ASSEMBLY
*5	NO. 4 CAMSHAFT	*6	NO. 2 CHAIN SUB-ASSEMBLY
*7	CAMSHAFT TIMING SPROCKET	*8	CAMSHAFT TIMING GEAR ASSEMBLY
*9	GASKET	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
*T1	1st: 10 (102, 7) 2nd: 16 (163, 12)	-	-
