Removal [02/2014 - 11/2016]: Procedure

Refer to REMOVAL [02/2014 - 11/2016]

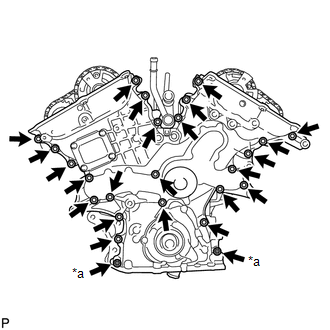

1. Remove the 23 bolts and 2 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Nut

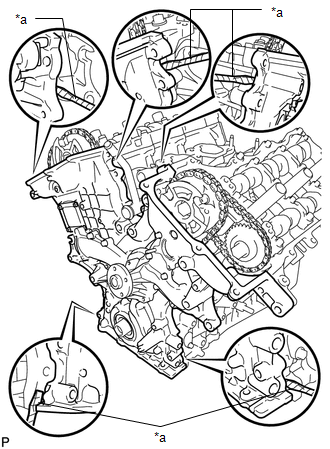

2. Remove the timing chain cover sub-assembly by prying between the timing chain cover sub-assembly and cylinder head sub-assembly or cylinder block sub-assembly with a screwdriver.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   Be careful not to damage the contact surfaces of the cylinder head sub-assembly, cylinder block sub-assembly and timing chain cover sub-assembly.

   HINT:

   Tape the screwdriver tip before use.

3. Remove the gasket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, pry out the timing chain case oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   *b	Wooden Block

   HINT:

   Tape the screwdriver tip before use.
