Components [02/2014 - 11/2016]: Illustration

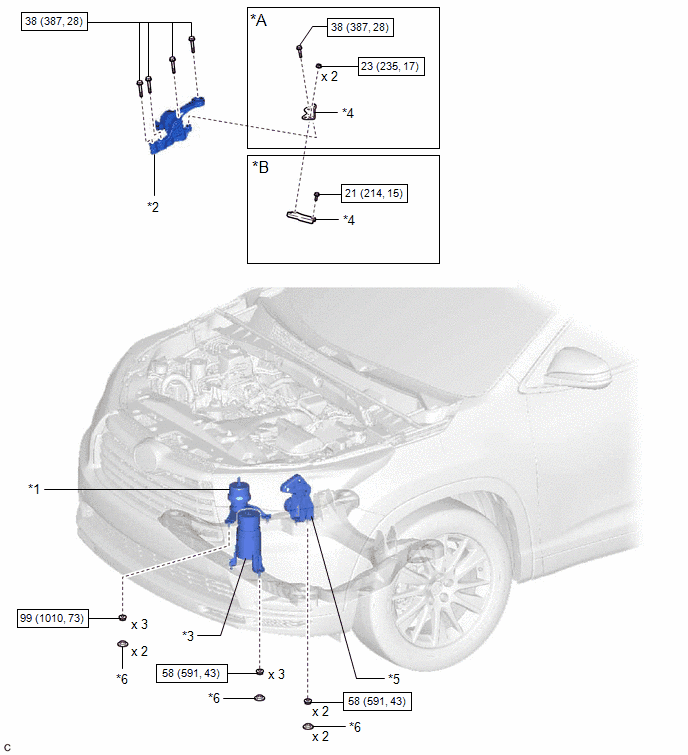

Fig 1: Water Pump Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Engine Mounting Stay Side	*B	for Intake Manifold Side
*1	ENGINE MOUNTING INSULATOR RH	*2	ENGINE MOVING CONTROL ROD BRACKET
*3	FRONT ENGINE MOUNTING INSULATOR ASSEMBLY	*4	NO. 2 ENGINE MOUNTING STAY RH
*5	REAR ENGINE MOUNTING INSULATOR ASSEMBLY	*6	HOLE PLUG
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

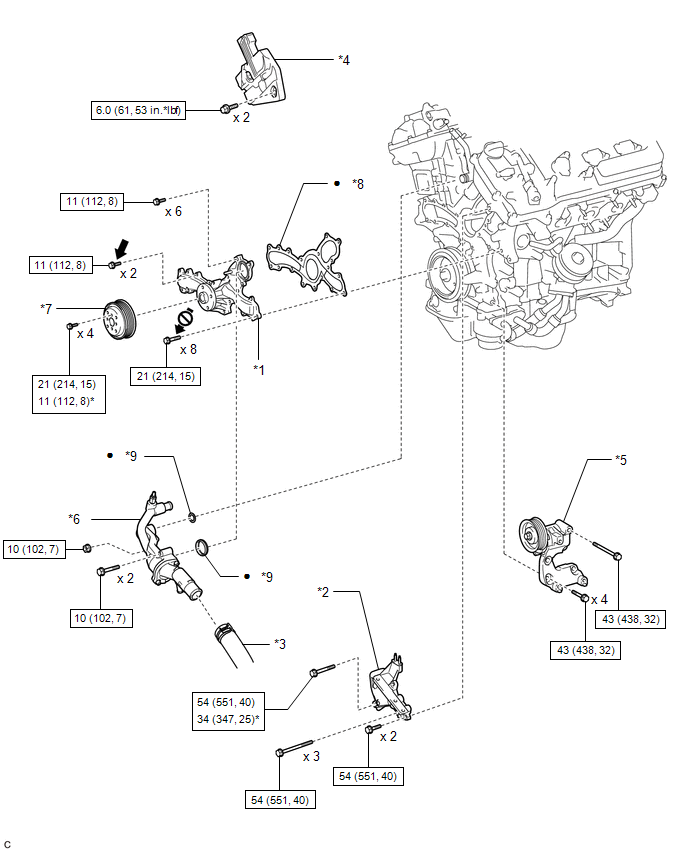

Fig 1: Water Pump Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ENGINE WATER PUMP ASSEMBLY	*2	FRONT NO. 1 ENGINE MOUNTING BRACKET LH
*3	NO. 2 RADIATOR HOSE	*4	NO. 2 TIMING GEAR COVER
*5	V-RIBBED BELT TENSIONER ASSEMBLY	*6	WATER INLET HOUSING
*7	WATER PUMP PULLEY	*8	WATER PUMP GASKET
*9	O-RING	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	*	For use with SST
•	Non-reusable part		Adhesive 1344
*	Precoated part		Do not apply lubricants to the threaded parts
