Components [02/2014 - 11/2016]: Illustration

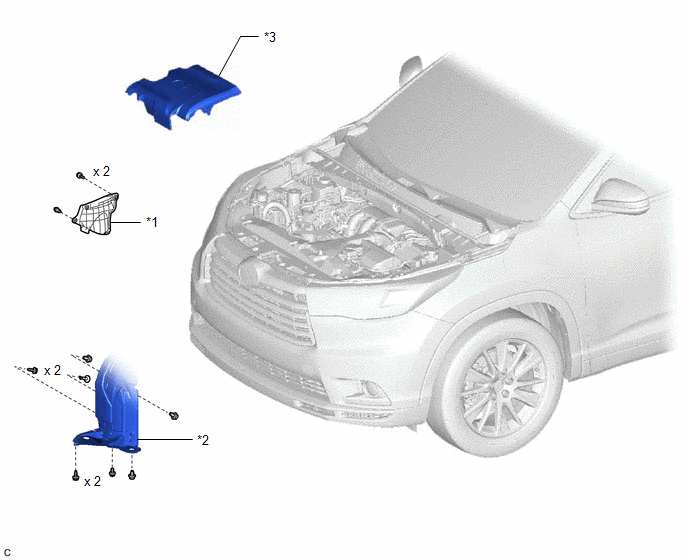

Fig 1: Thermostat Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT FENDER APRON SEAL RH	*2	FRONT FENDER LINER RH
*3	V-BANK COVER SUB-ASSEMBLY	-	-

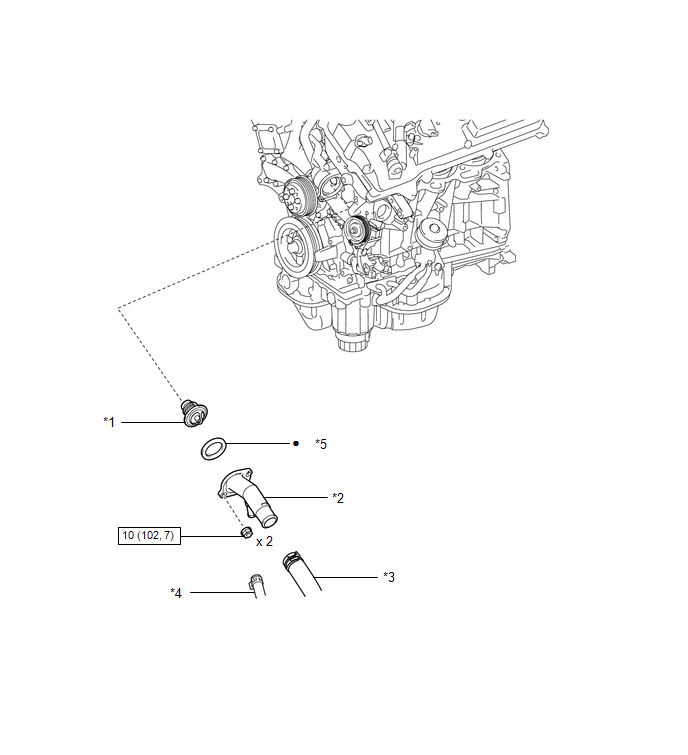

Fig 1: Thermostat Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	THERMOSTAT	*2	WATER INLET
*3	NO. 2 RADIATOR HOSE	*4	OIL COOLER PIPE
*5	GASKET	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
