Removal [02/2014 - 11/2016]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 , or refer to PROCEDURE - Step 22

  2. DRAIN ENGINE COOLANT (for Engine)

    See step  2

  3. REMOVE HEATER COVER

    Refer to PROCEDURE - Step 7

  4. REMOVE TEMPERATURE SWITCH
    1. Disconnect the temperature switch connector.

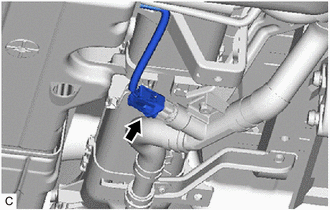

      GTY424971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

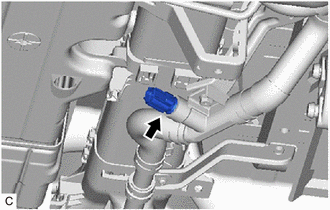

    2. GTY424973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a 19 mm union nut wrench, remove the temperature switch from the water pipe joint.

      NOTE:

      Do not apply any excessive force to the cooler pipe when removing the temperature switch.
