Components [02/2014 - 11/2016]: Illustration

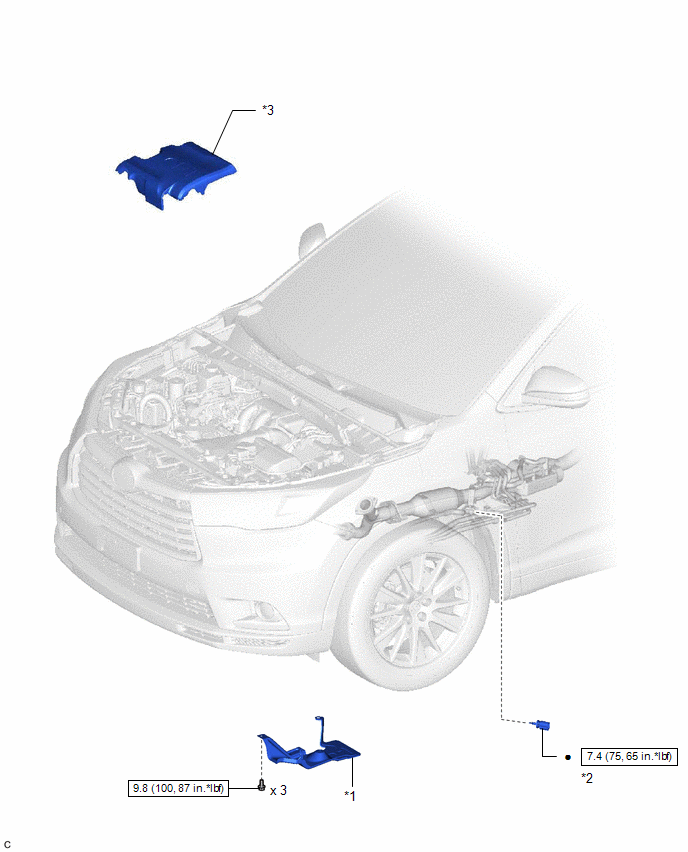

Fig 1: Temperature Switch Replacement Components With Torque Specifications
GTY439979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HEATER COVER *2 TEMPERATURE SWITCH
*3 V-BANK COVER SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
