Removal [02/2014 - 11/2016]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 , or refer to PROCEDURE - Step 22

  2. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 11 , or refer to PROCEDURE - Step 11

  3. DRAIN ENGINE COOLANT (for Engine)

    See step  2

  4. REMOVE COOLER CONDENSER ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2016]

  5. DISCONNECT NO. 1 RADIATOR HOSE

    See step  11

  6. DISCONNECT NO. 2 RADIATOR HOSE
    1. Slide the clip and disconnect the No. 2 radiator hose.
      GTY454731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT RADIATOR RESERVE TANK HOSE

    See step  12

  8. REMOVE RADIATOR ASSEMBLY
    1. Remove the radiator assembly with the fan shroud assembly from the 2 lower radiator supports.
    2. Remove the 2 lower radiator supports from the vehicle body.
    3. Remove the 2 radiator supports from the radiator assembly.
    4. Disengage the 3 claws.

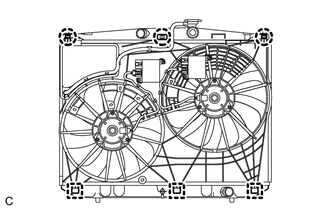

      GTY451479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 3 guides to remove the fan shroud assembly from the radiator assembly.
      NOTE:

      Do not damage the radiator assembly when removing the fan shroud assembly.
