Components [02/2014 - 11/2016]: Illustration

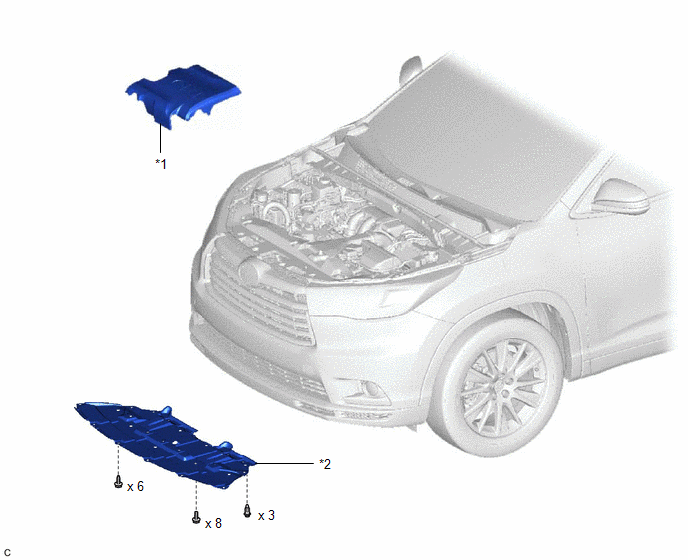

Fig 1: Radiator Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

V-BANK COVER SUB-ASSEMBLY

*2

NO. 1 ENGINE UNDER COVER

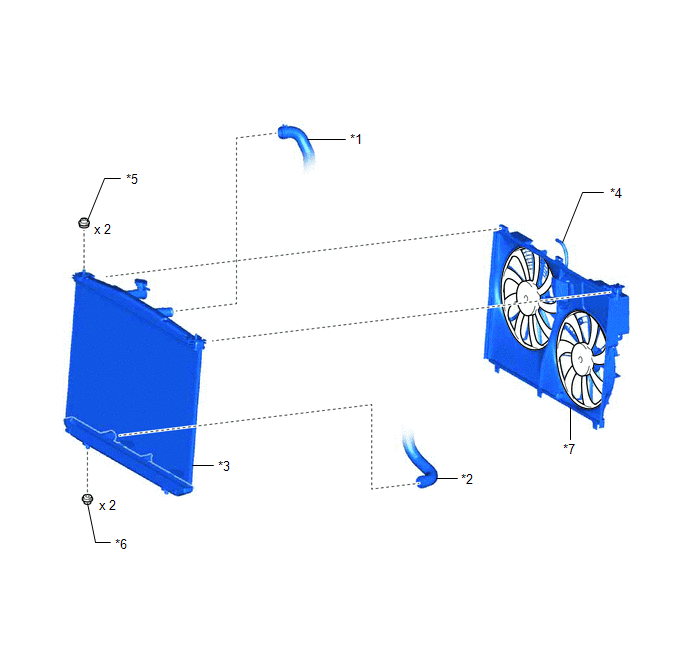

Fig 1: Radiator Replacement Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 RADIATOR HOSE	*2	NO. 2 RADIATOR HOSE
*3	RADIATOR ASSEMBLY	*4	RADIATOR RESERVE TANK HOSE
*5	RADIATOR SUPPORT	*6	LOWER RADIATOR SUPPORT
*7	FAN SHROUD ASSEMBLY	-	-
