Components [02/2014 - 11/2016]: Illustration

Fig 1: Exhaust Pipe Gas Control Actuator Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

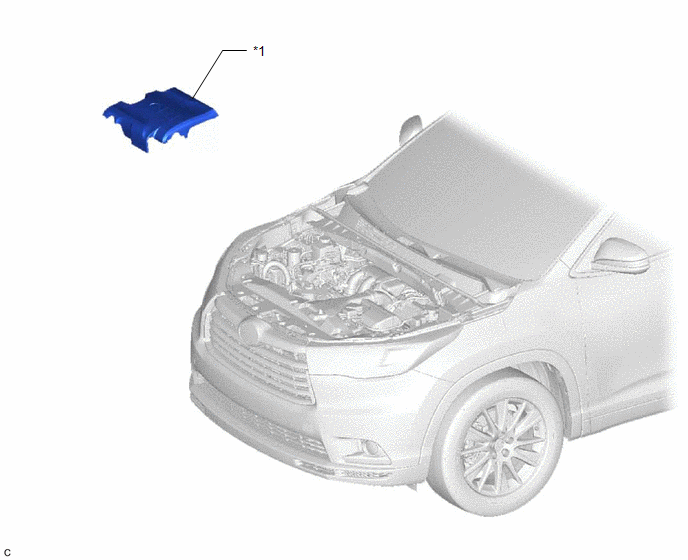

V-BANK COVER SUB-ASSEMBLY

-

-

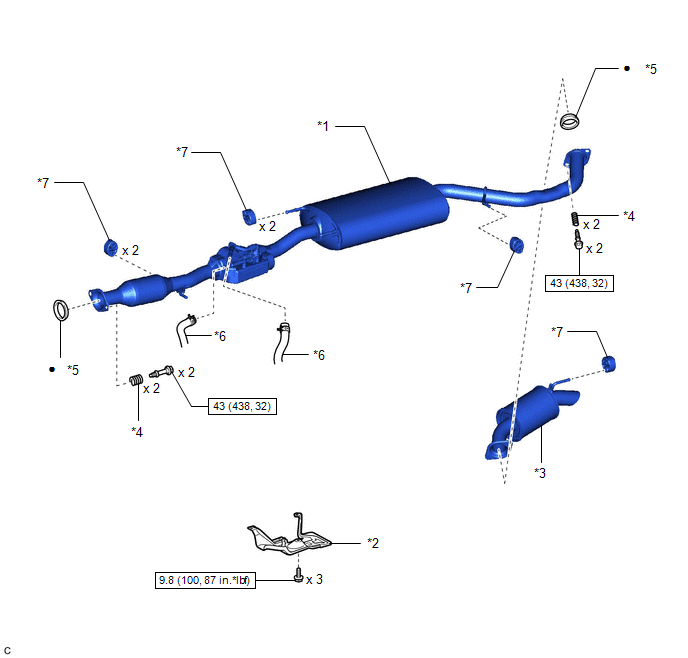

Fig 1: Exhaust Pipe Gas Control Actuator Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CENTER EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	HEATER COVER
*3	TAIL EXHAUST PIPE ASSEMBLY	*4	COMPRESSION SPRING
*5	GASKET	*6	HEATER WATER HOSE
*7	EXHAUST PIPE SUPPORT	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

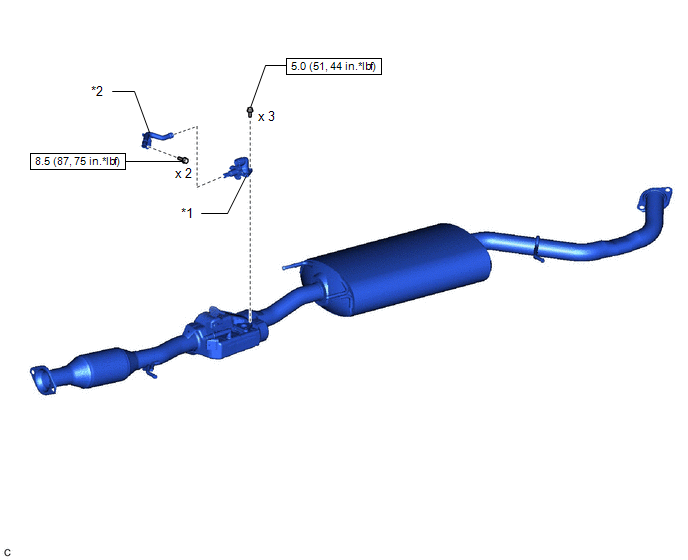

Fig 1: Exhaust Pipe Gas Control Actuator Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	EXHAUST PIPE GAS CONTROL ACTUATOR SUB-ASSEMBLY	*2	EXHAUST BY-PASS PIPE
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
