Components [02/2014 - 11/2016]: Illustration

Fig 1: Cooling Fan Motor Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

V-BANK COVER SUB-ASSEMBLY

*2

NO. 1 ENGINE UNDER COVER

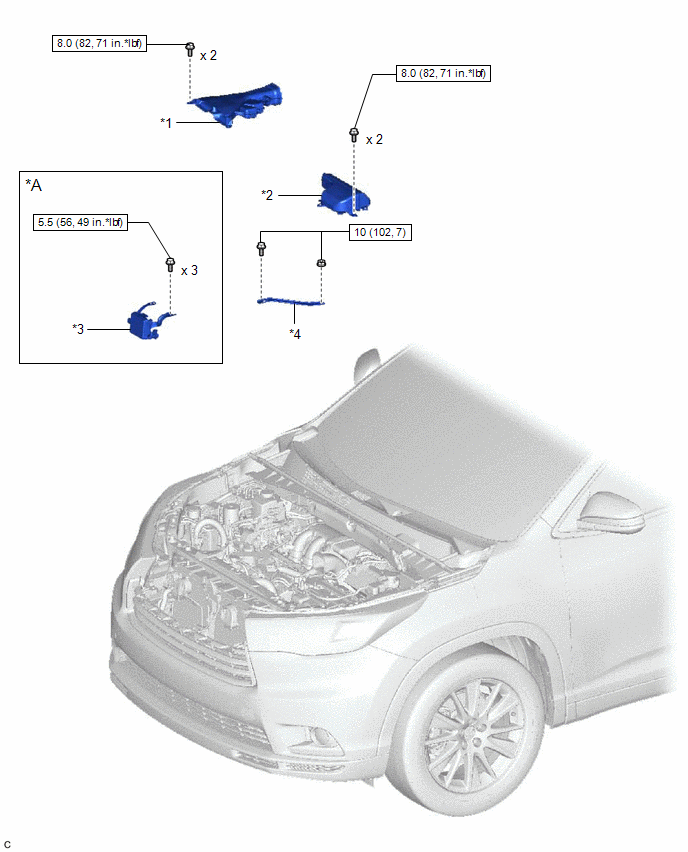

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Dynamic Radar Cruise Control System	-	-
*1	INLET NO. 2 AIR CLEANER	*2	INTAKE AIR RESONATOR SUB-ASSEMBLY
*3	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	*4	NO. 3 INVERTER BRACKET
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

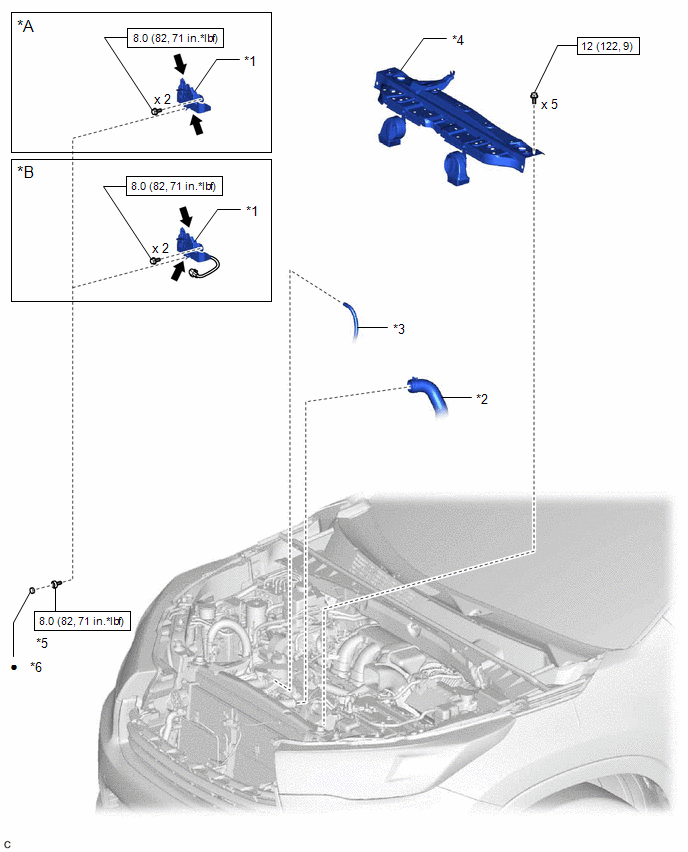

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Engine Hood Courtesy Switch	*B	w/ Engine Hood Courtesy Switch
*1	HOOD LOCK ASSEMBLY	*2	NO. 1 RADIATOR HOSE
*3	RADIATOR RESERVE TANK HOSE	*4	UPPER RADIATOR SUPPORT SUB-ASSEMBLY
*5	HOOD LOCK BOLT	*6	HOOD LOCK NUT CAP
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

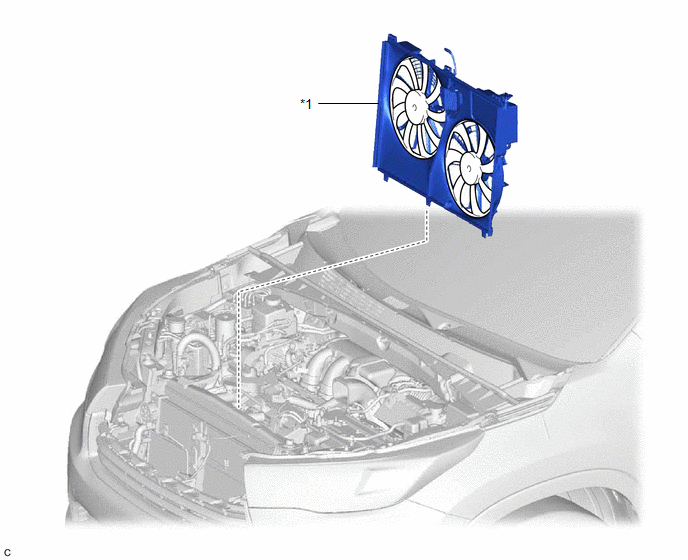

Fig 1: Cooling Fan Motor Replacement Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

FAN SHROUD ASSEMBLY

-

-

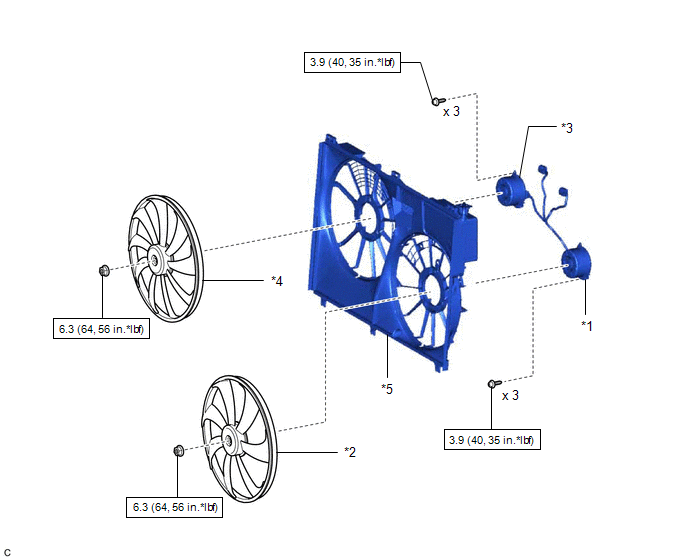

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COOLING FAN MOTOR	*2	FAN
*3	NO. 2 COOLING FAN MOTOR	*4	NO. 2 FAN
*5	FAN SHROUD	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
