Parts Location [02/2014 - ]: Illustration

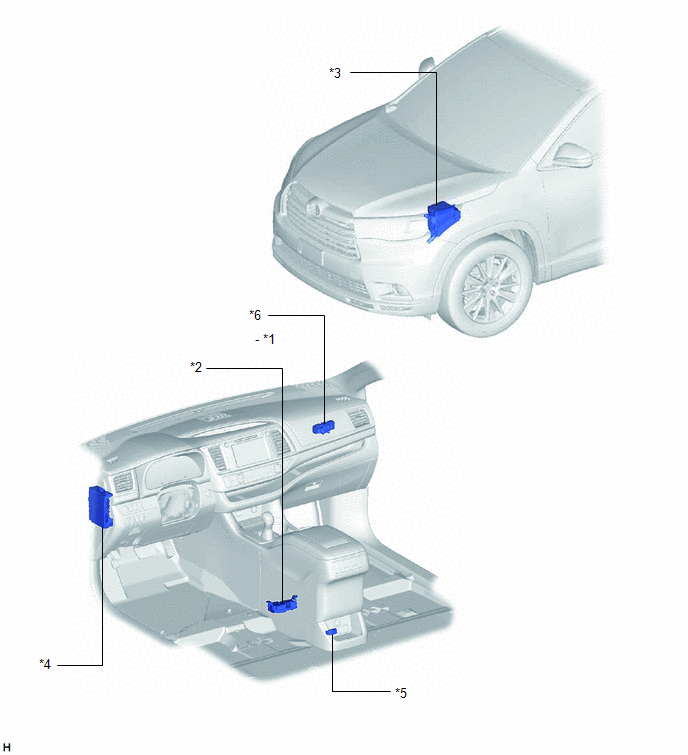

Fig 1: Accessory Socket System Components Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AC INVERTER RELAY	*2	VOLTAGE INVERTER ASSEMBLY
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - INV FUSE	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG FUSE
*5	POWER OUTLET SOCKET ASSEMBLY	*6	NO. 5 RELAY BLOCK ASSEMBLY
