Parts Location [11/2016 - ]: Illustration

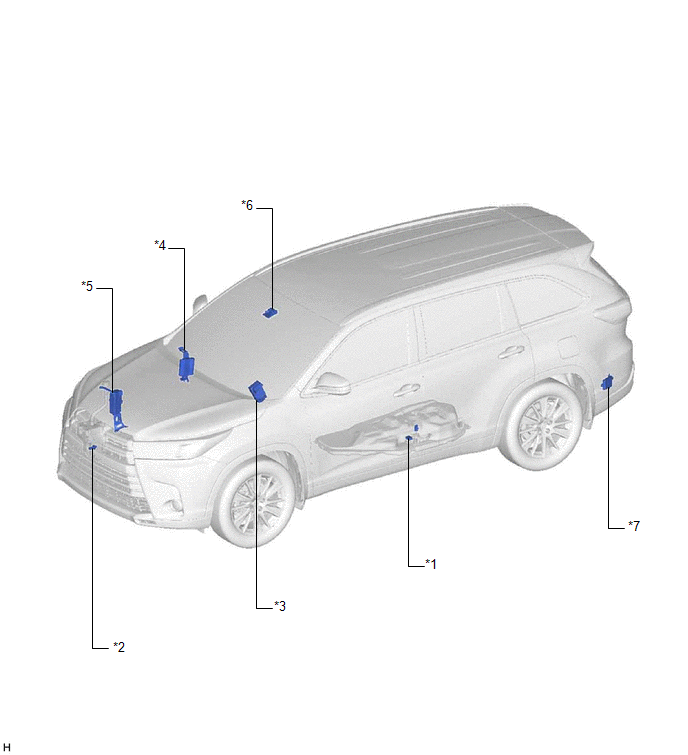

Fig 1: Meter / Gauge System Components Location (1 Of 8) (11/2016 -)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL SENDER GAUGE ASSEMBLY	*2	LEVEL WARNING SWITCH ASSEMBLY
*3	POWER STEERING ECU ASSEMBLY	*4	SKID CONTROL ECU ASSEMBLY
*5	ECM	*6	FORWARD RECOGNITION CAMERA (w/ Forward Recognition Camera)
*7	BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System)	-	-

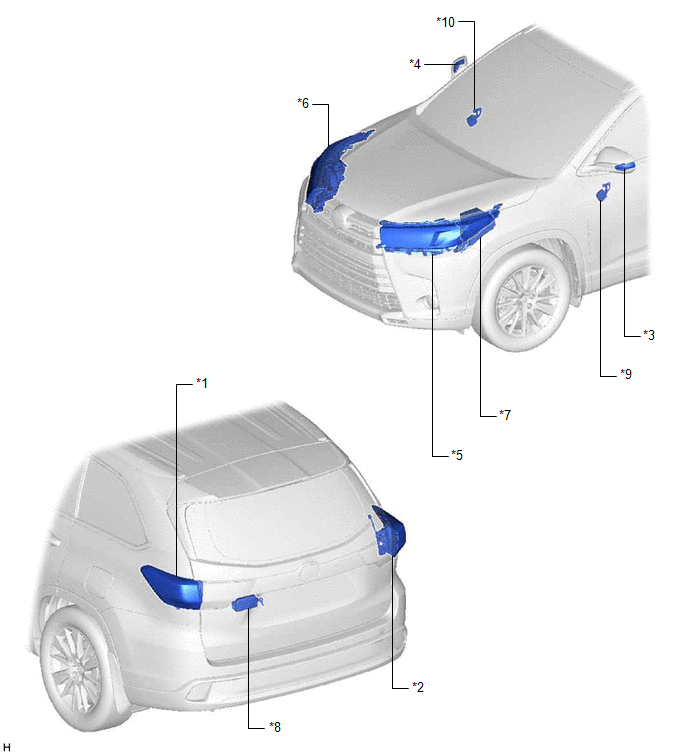

Fig 1: Meter / Gauge System Components Location (2 Of 8) (11/2016 -)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR COMBINATION LIGHT ASSEMBLY LH	*2	REAR COMBINATION LIGHT ASSEMBLY RH
*3	SIDE TURN SIGNAL LIGHT ASSEMBLY LH	*4	SIDE TURN SIGNAL LIGHT ASSEMBLY RH
*5	HEADLIGHT ASSEMBLY LH	*6	HEADLIGHT ASSEMBLY RH
*7	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE	*8	MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door System)
*9	OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory)	*10	OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Position Memory)

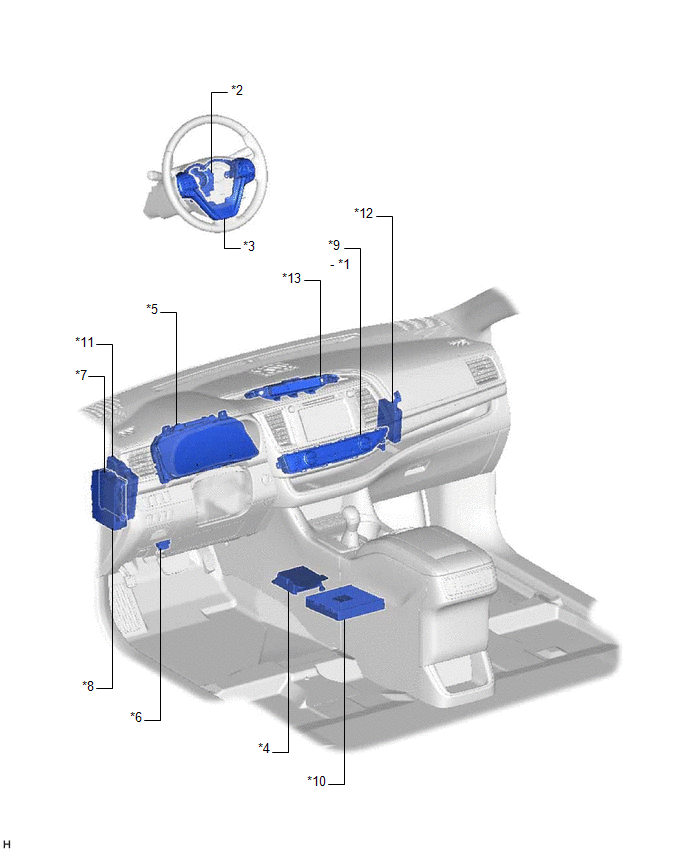

Fig 1: Meter / Gauge System Components Location (3 Of 8) (11/2016 -)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HAZARD WARNING SIGNAL SWITCH	*2	SPIRAL CABLE SUB-ASSEMBLY
*3	STEERING PAD SWITCH ASSEMBLY	*4	AIRBAG SENSOR ASSEMBLY
*5	COMBINATION METER ASSEMBLY	*6	DLC3
*7	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*8	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE - HAZ FUSE
*9	AIR CONDITIONING CONTROL ASSEMBLY	*10	STEREO COMPONENT AMPLIFIER ASSEMBLY (for 12 Speakers)
*11	HYBRID VEHICLE CONTROL ECU ASSEMBLY	*12	AIR CONDITIONING AMPLIFIER ASSEMBLY
*13	CLOCK ASSEMBLY	-	-

Fig 1: Meter / Gauge System Components Location (4 Of 8) (11/2016 -)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADLIGHT DIMMER SWITCH ASSEMBLY	*2	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*3	DRIVING SUPPORT ECU ASSEMBLY (w/ Forward Recognition Camera)	*4	CLEARANCE WARNING ECU ASSEMBLY (w/ Intuitive Parking Assist System)
*5	DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch)	*6	RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type)
*7	NAVIGATION RECEIVER ASSEMBLY (for Navigation Receiver Type)	*8	VEHICLE APPROACHING SPEAKER ECU
*9	WINDSHIELD WIPER RELAY ASSEMBLY (w/ Auto Wiper System)	-	-

Fig 1: Meter / Gauge System Components Location (5 Of 8) (11/2016 -)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

ENGINE OIL PRESSURE SWITCH ASSEMBLY

*2

TEMPERATURE SWITCH

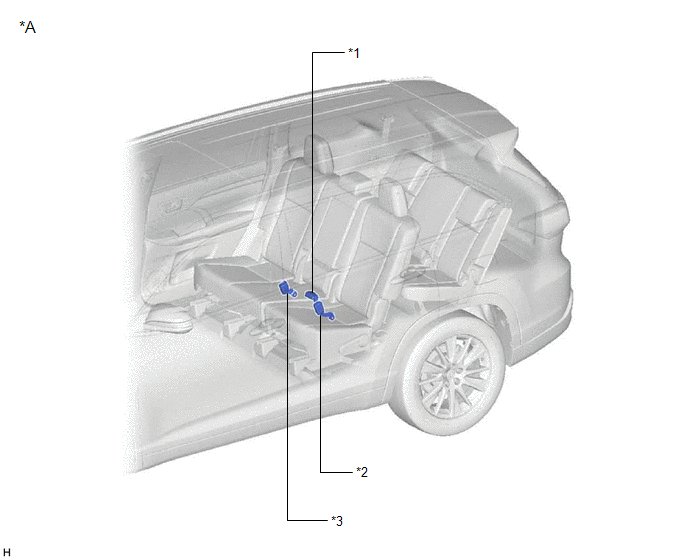

Fig 1: Meter / Gauge System Components Location (6 Of 8) (11/2016 -)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

A	for 60/40 Split Seat Type	-	-
*1	REAR SEAT INNER BELT ASSEMBLY	*2	REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
*3	REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH	-	-

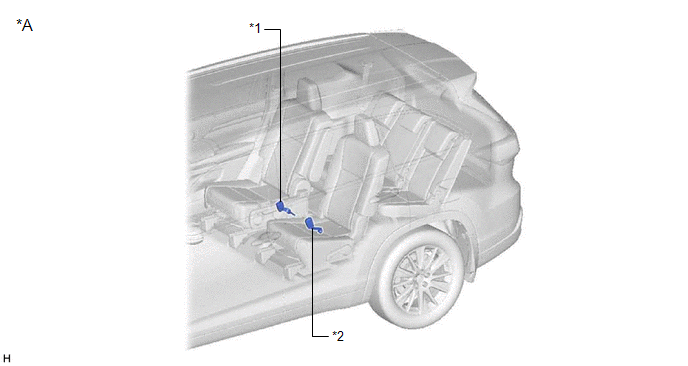

Fig 1: Meter / Gauge System Components Location (7 Of 8) (11/2016 -)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

A	for Captain Seat Type	-	-
*1	REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH	*2	REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

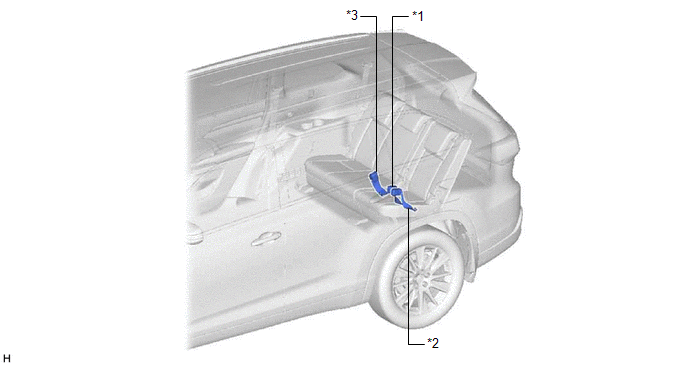

Fig 1: Meter / Gauge System Components Location (8 Of 8) (11/2016 -)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SEAT INNER BELT SUB-ASSEMBLY	*2	REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY
*3	REAR NO. 2 SEAT INNER BELT ASSEMBLY RH	-	-
