Parts Location [11/2015 - 11/2016]: Illustration
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | LEVEL WARNING SWITCH ASSEMBLY |
| *3 | POWER STEERING ECU ASSEMBLY | *4 | SKID CONTROL ECU ASSEMBLY |
| *5 | ECM | *6 | LANE DEPARTURE WARNING CAMERA (w/ Lane Departure Alert System) |
| *7 | BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System) | - | - |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH | *2 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | HEADLIGHT ASSEMBLY LH | *6 | HEADLIGHT ASSEMBLY RH |
| *7 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE |
*8 | MULTIPLEX NETWORK DOOR ECU |
| *9 | OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory) | *10 | OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Position Memory) |
| *1 | HAZARD WARNING SIGNAL SWITCH | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | AIRBAG SENSOR ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | DLC3 |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE - HAZ FUSE |
| *9 | AIR CONDITIONING CONTROL ASSEMBLY | *10 | STEREO COMPONENT AMPLIFIER ASSEMBLY (for 12 Speakers) |
| *11 | POWER MANAGEMENT CONTROL ECU | *12 | AIR CONDITIONING AMPLIFIER ASSEMBLY |

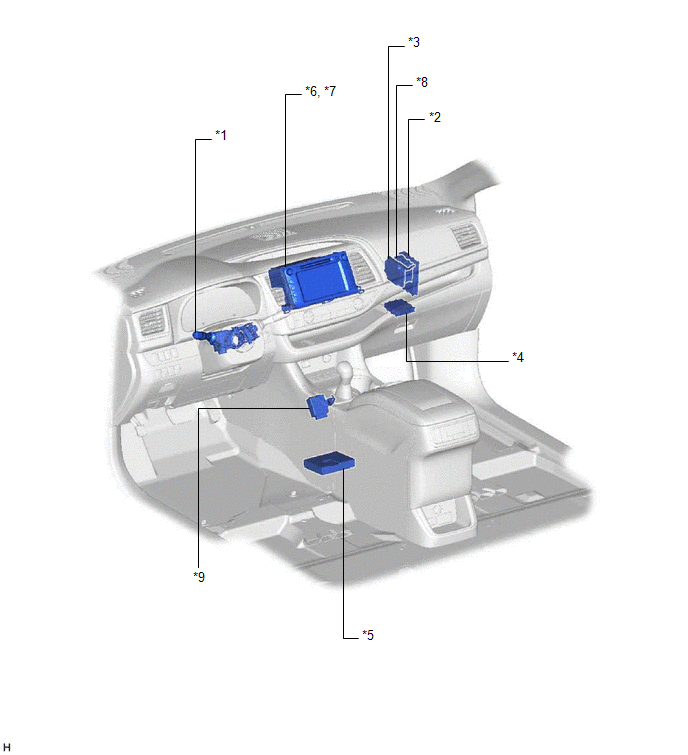

| *1 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *2 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *3 | DRIVING SUPPORT ECU ASSEMBLY (w/ Pre-collision System) | *4 | CLEARANCE WARNING ECU ASSEMBLY (w/ Intuitive Parking Assist System) |
| *5 | DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch) | *6 | RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type) |
| *7 | NAVIGATION RECEIVER ASSEMBLY (for Navigation Receiver Type) | *8 | VEHICLE APPROACHING SPEAKER ECU |
| *9 | WINDSHIELD WIPER RELAY ASSEMBLY (w/ Auto Wiper System) | - | - |
