DTC B150A: Lost Communication with HMI-LAN [11/2016 - ]: Wiring Diagram

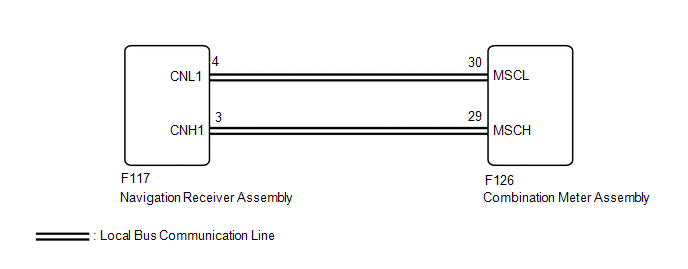

  1. for Navigation Receiver Type
    GTY707758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

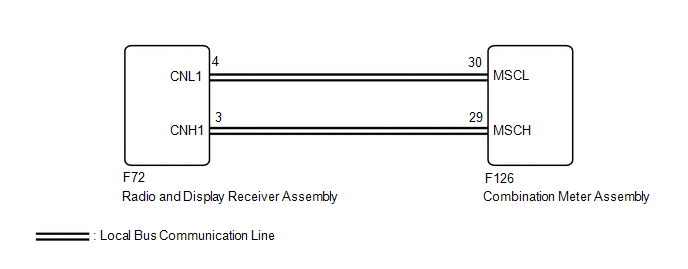

  2. for Radio and Display Type (for 8 Inch Display Type)
    GTY735576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
