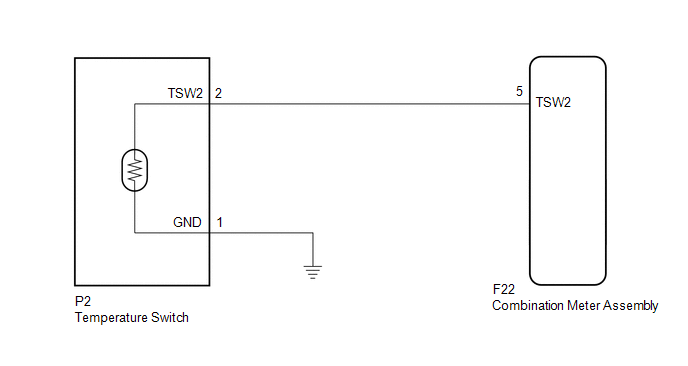

DTC B1503: Exhaust Heat Management Warning Detected [02/2014 - 11/2016]: Wiring Diagram

GTY441456

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
