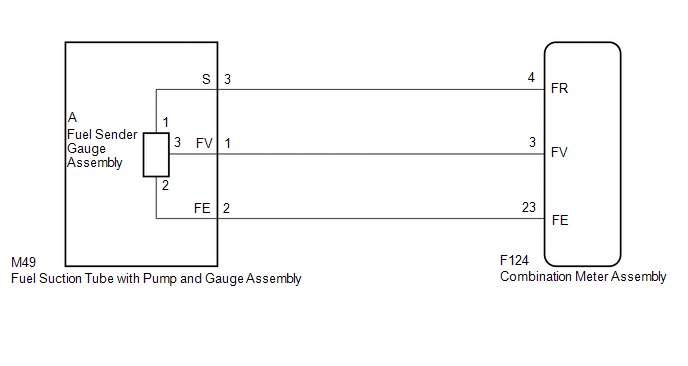

DTC B1500: Fuel Sender Open Detected [11/2016 - ]: Wiring Diagram

GTY693512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
