Multiplex Communication System (CAN) (From Nov. 2016 Production)

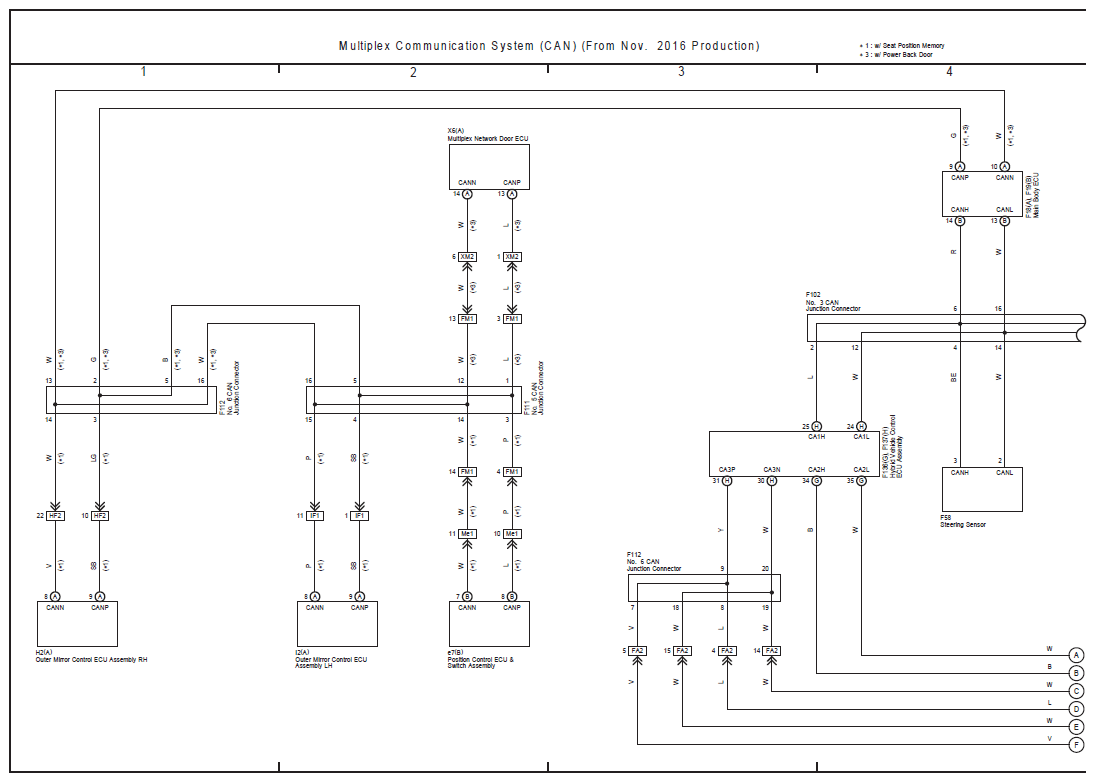

G12230653

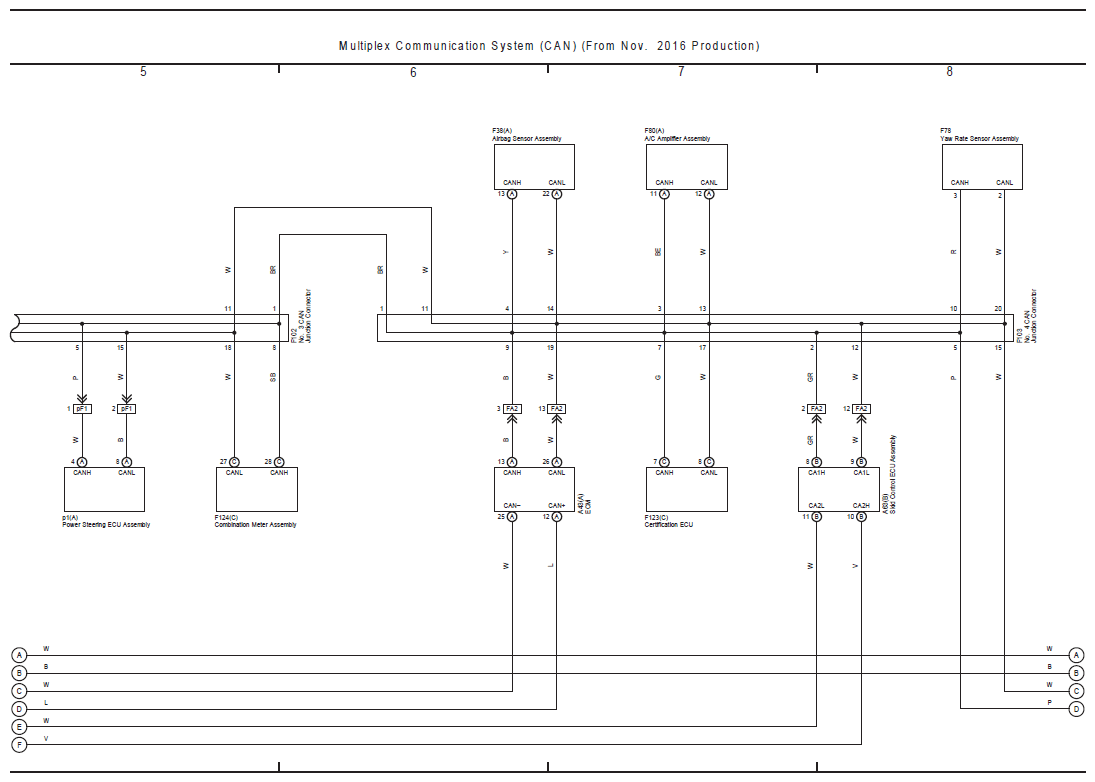

G12230654

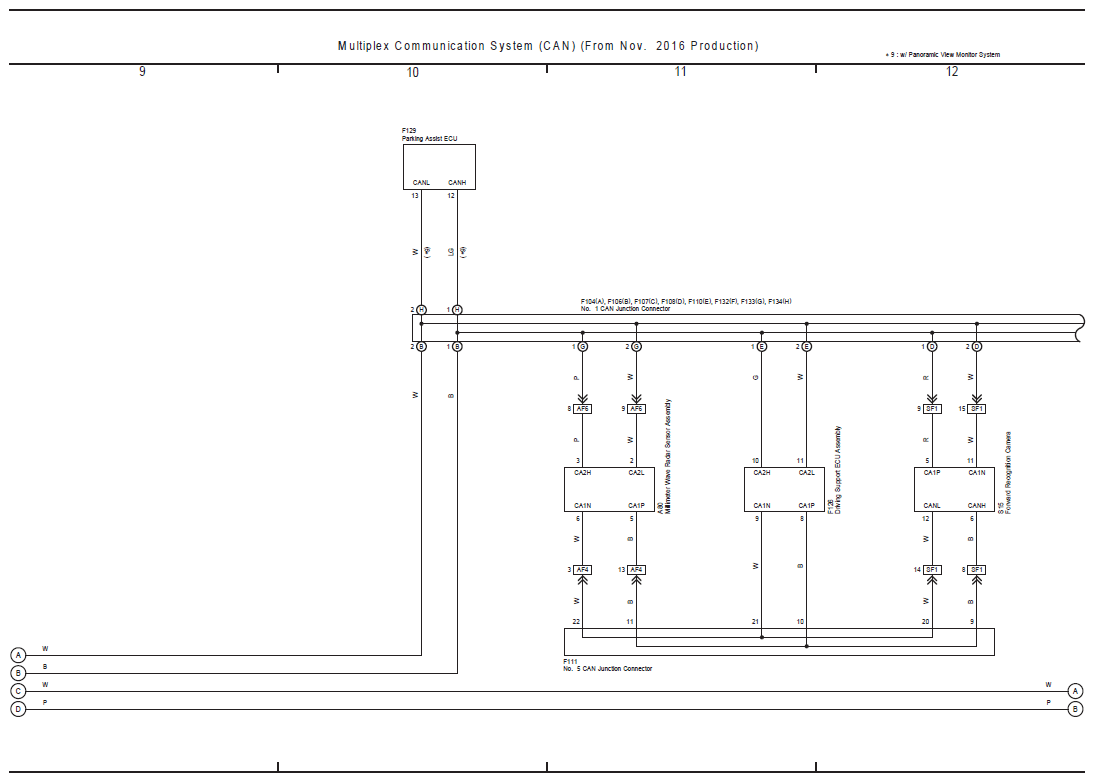

G12230655

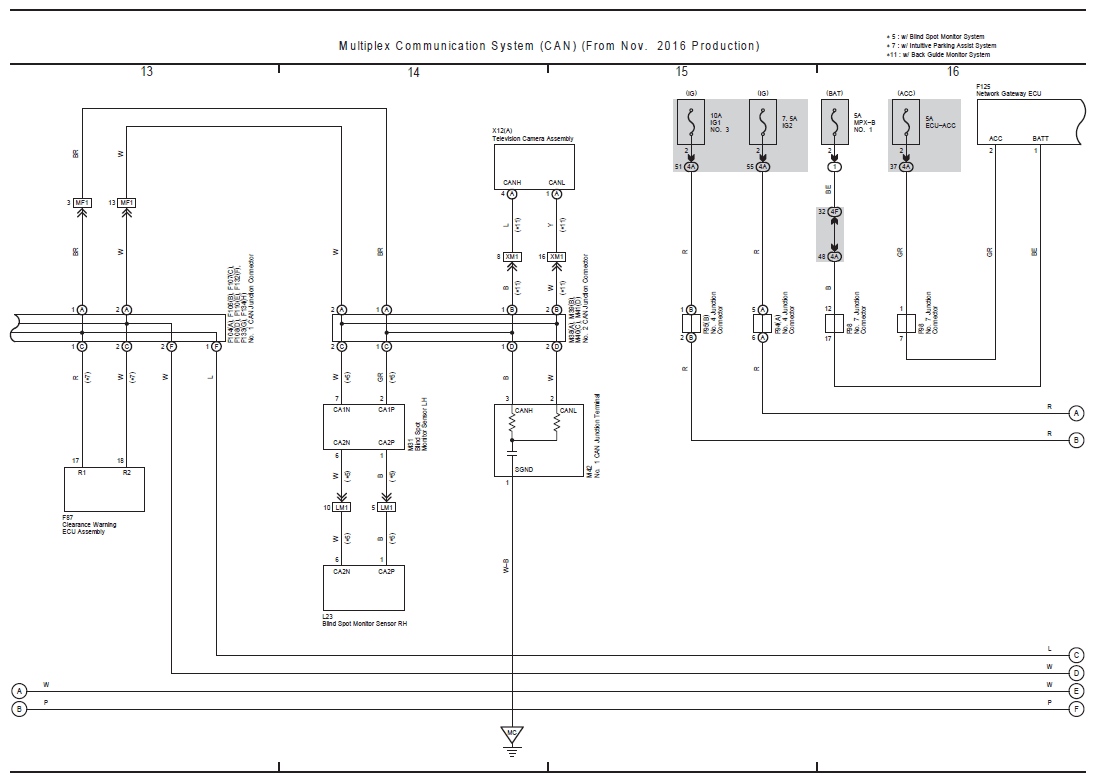

G12230656

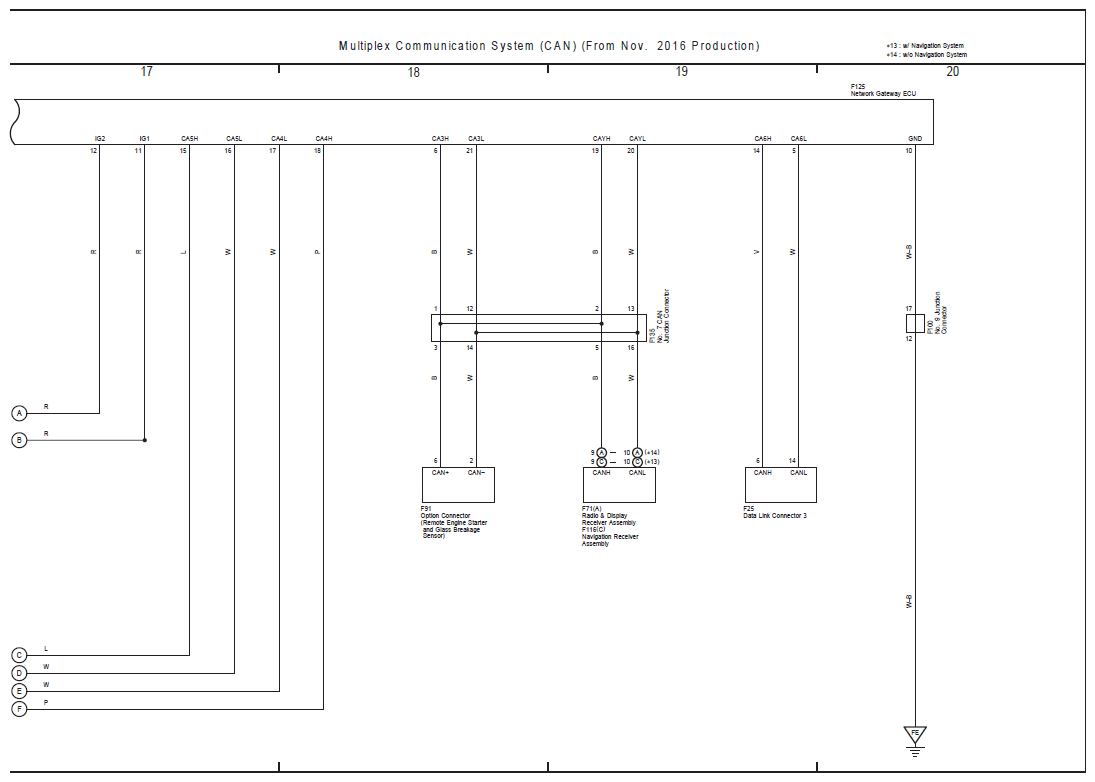

G12230657
